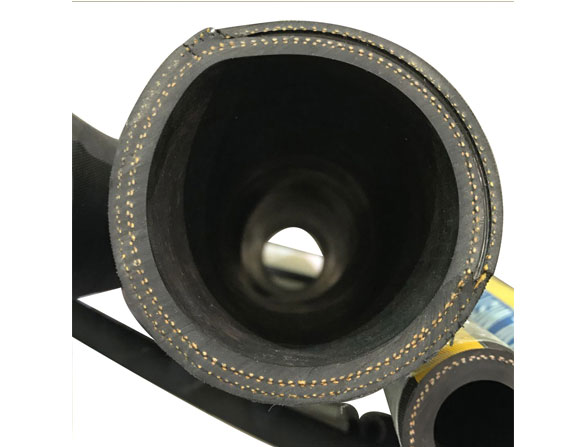

Rubber Oil Suction Hose

Construction:
Tube: Black, smooth, Nitrile rubber.
Reinforcement: Multi piles high strength synthetic fabric and steel wire helix skeleton.
Cover: Black, wrapped surface, smooth and corrugated cover available, weather and ozone resistant, synthetic rubber.

Application:
For suction and discharge of petroleum-based products, diesel, gasoline, lubricants, fuel, with aromatic content up to 50%

Temperature:
-40℃ (-104°F) to 80℃ (+176°F)

Characteristics:
For aromatic content up to 50%
Excellent oil-resistance
Small bend radius

Specification of Rubber Oil Suction Hose

I.D		O.D	W.P		VACUUM			L
Inch	mm	mm	bar	psi	Kpa	inch	psi	m	ft
3/4"	19.1	31	10	150	-80	6	15	60	200
1"	25.4	37	10	150	-80	6	152	60	200
1-1/4"	31.8	44	10	150	-80	8	200	60	200
1-1/2"	38.1	51	10	150	-80	9	230	60	200
2"	50.8	64	10	150	-80	10	254	60	200
2-1/2"	63.5	76	10	150	-80	15	380	60	200
3"	76.2	91	10	150	-80	18	460	60	200
3-1/2"	88.9	105	10	150	-80	22	550	60	200
4"	101.6	118	10	150	-80	24	610	40	130
5"	127	145	10	150	-80	30	760	30	100
6"	152.4	170	10	150	-80	36	916	30	100
8"	203.2	224	10	150	-80	48	1200	30	100
10"	254	282	10	150	-80	50	1250	10	33
12"	304.8	328	10	150	-80	60	1520	10	33
14"	350	380	10	150	-80	60	1520	10	33
