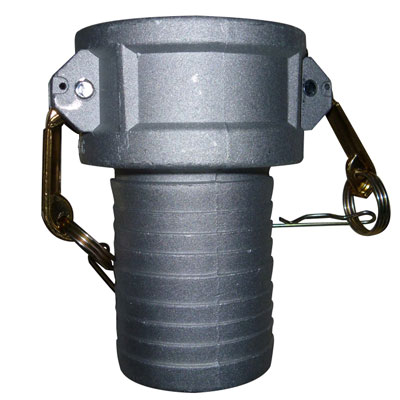

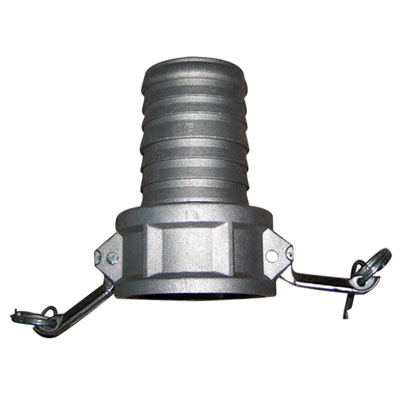

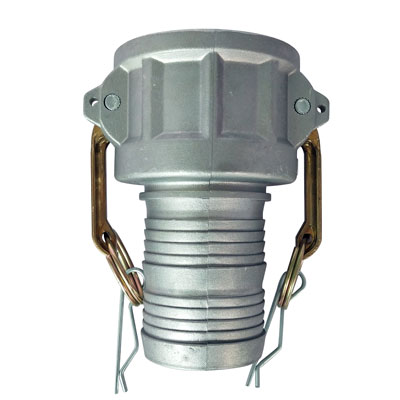

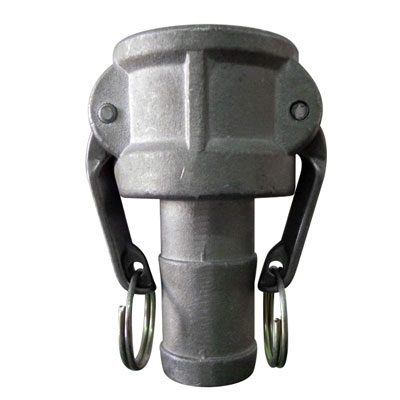

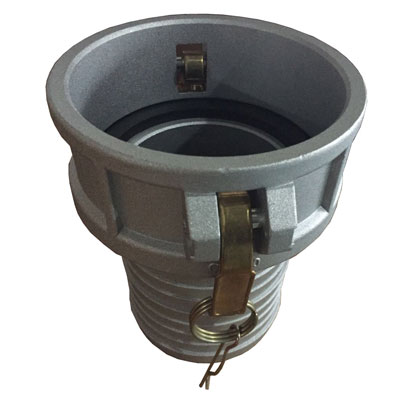

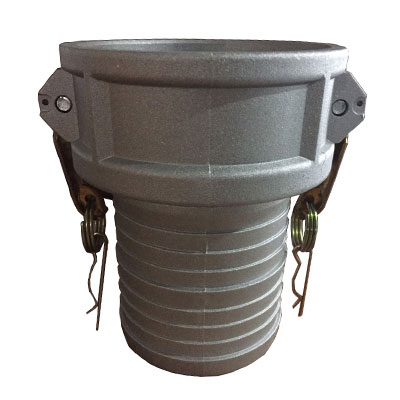

Female Camlock and Hose Shank Type-C

Female-Camlock-and-Hose-Shank-Type-C

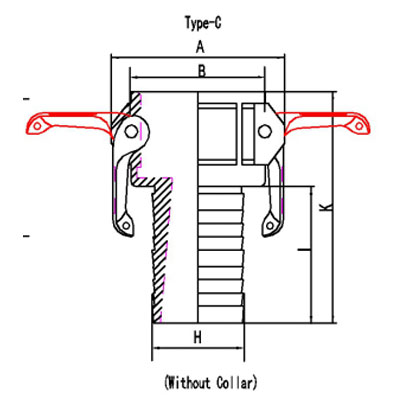

Specification of Female Camlock and Hose Shank

Part No. Type DN Inch A B H I K
QC-C050 50 13 1/2" 44.7 32.7 14-14.5 40.2 70.1
QC-C075 75 20 3/4" 61.35 41.5 20.5-21 50.2 83.5
QC-C100 100 25 1" 67.7 46.5 27-27.5 57 97.5
QC-C125 125 32 1-1/4" 79.3 58.3 33.5-34.5 56.7 103
QC-C150 150 40 1-1/2" 87.6 67.5 40-41 75.3 122
QC-C200 200 50 2" 97 75.3 51-52.5 75.9 128.7
QC-C250 250 65 2-1/2" 110.2 91.8 65.5-66.5 96.2 152.6
QC-C300 300 80 3" 131.4 108.5 77.5-78.5 99.5 158.8
QC-C400 400 100 4" 159.5 139.1 103-104 110 170
QC-C500 500 125 5" 188.4 168.4 129-130 129.3 189.5
QC-C600 600 150 6" 240 199.6 154-155.5 168.7 232.3
QC-C800 800 200 8" 298.45 257.17 205.4-205.6 190 285.26
