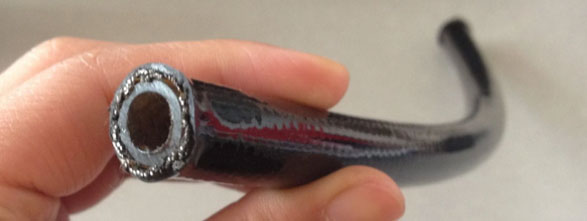

SIZE | Model No | I.D. | O.D. | WP | BP | Min. Bend Radius | SIZE | Model No | I.D. | O.D. | WP | BP | Min. Bend Radius |
mm | mm | bar | bar | mm | mm | mm | bar | bar | mm | ||||
GS-4 | 1 | 4 | 9.1 | 450 | 1,350 | 70 | GS-19 | 1 | 19 | 25.3 | 130 | 390 | 200 |
2 | 4 | 10.8 | 650 | 1,950 | 75 | 2 | 19 | 27 | 200 | 600 | 210 | ||
3 | 4 | 10.3 | 750 | 2,250 | 100 | 3 | 19 | 30 | 280 | 840 | 280 | ||
4 | 4 | 12 | 1,200 | 3,600 | 110 | 4 | 19 | 33 | 460 | 1,380 | 290 | ||
GS-6 | 1 | 6 | 11.3 | 400 | 1,200 | 80 | GS-22 | 1 | 22 | 28.5 | 110 | 330 | 220 |
2 | 6 | 13 | 600 | 1,800 | 85 | 2 | 22 | 30.2 | 170 | 510 | 230 | ||
3 | 6 | 12.4 | 700 | 2,100 | 110 | ||||||||
4 | 6 | 14 | 1,000 | 3,000 | 120 | ||||||||
GS-8 | 1 | 8 | 13.3 | 300 | 900 | 100 | GS-25 | 1 | 25 | 31.7 | 100 | 300 | 250 |
2 | 8 | 15.1 | 450 | 1,350 | 105 | 2 | 25 | 33.4 | 150 | 450 | 260 | ||
3 | 8 | 14.7 | 600 | 1,800 | 120 | 3 | 25 | 36 | 210 | 630 | 400 | ||
4 | 8 | 16.1 | 800 | 2,400 | 130 | 4 | 25 | 39 | 350 | 1,050 | 420 | ||
GS-10 | 1 | 10 | 15.4 | 250 | 750 | 120 | GS-32 | 1 | 32 | 38.9 | 70 | 210 | 280 |
2 | 10 | 17.2 | 350 | 1,050 | 125 | 2 | 32 | 40.6 | 110 | 330 | 290 | ||
3 | 10 | 17.7 | 550 | 1,650 | 140 | 3 | 32 | 47 | 200 | 600 | 450 | ||
4 | 10 | 19.9 | 800 | 2,400 | 150 | 4 | 32 | 50 | 320 | 960 | 470 | ||
GS-13 | 1 | 13 | 18.7 | 200 | 600 | 150 | GS-38 | 1 | 38 | 45 | 50 | 150 | 320 |
2 | 13 | 20.5 | 300 | 900 | 160 | 2 | 38 | 47 | 90 | 270 | 340 | ||
3 | 13 | 23 | 500 | 1,500 | 190 | 3 | 38 | 51 | 170 | 510 | 480 | ||
4 | 13 | 22.6 | 700 | 2,100 | 200 | 4 | 38 | 54 | 250 | 750 | 500 | ||
GS-16 | 1 | 16 | 22 | 150 | 450 | 180 | GS-51 | 1 | 51 | 58.2 | 30 | 90 | 500 |
2 | 16 | 23.7 | 230 | 690 | 190 | 2 | 51 | 60.4 | 80 | 240 | 550 | ||
3 | 16 | 26.6 | 300 | 900 | 250 | 3 | 51 | 64 | 140 | 420 | 600 | ||
4 | 16 | 29 | 550 | 1,650 | 260 | 4 | 51 | 67 | 200 | 600 | 650 |
