DIN EN 857 2SC
Hose
din en857 2sc 1

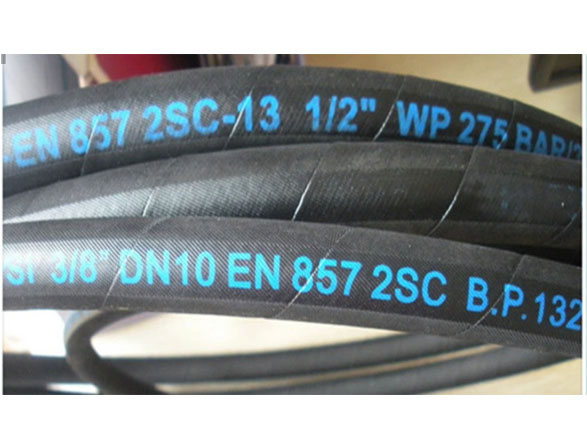

DIN EN 857 2SC

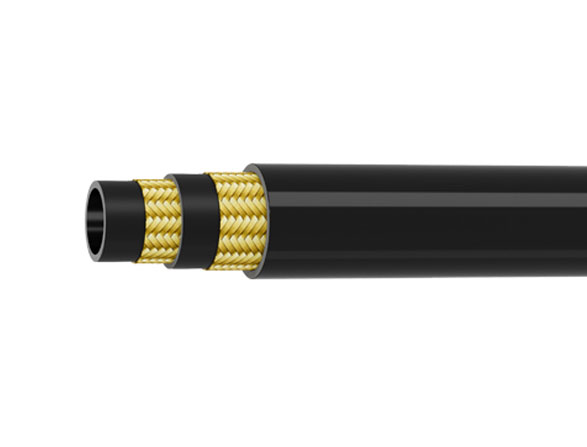

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braids
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃
Applications:
High pressure service with tight bends for petroleum and water based hydraulic fluids
Contact Us
  • din en857 2sc 1
  • din en857 2sc 2
DN Hose I.D Hose O.D WP BP Min.B.R. Weight
inch mm mm Bar psi Bar Psi mm kg/m
6 1/4 6.4 13.5 400 5800 1600 23200 75 0.28
8 5/16 7.9 14.7 350 5075 1400 20300 85 0.33
10 3/8 9.5 17.2 330 4785 1320 19140 90 0.42
13 1/2 12.7 20.5 275 3990 1100 15960 130 0.52
16 5/8 15.9 23.8 250 3625 1000 14500 170 0.61
19 3/4 19 27.6 215 3120 860 12480 200 0.79
25 1 25.4 35.4 165 2390 660 9560 250 1.1
