PVC Air Hose
Hose
PVC Air Hose

PVC Air Hose

Characteristics: light –weight, wear resistance, erosion resistance, good flexibility
Working Temperature: -5°C-65°C
  • PVC Air Hose
  • PVC Air Hose
  • PVC Air Hose

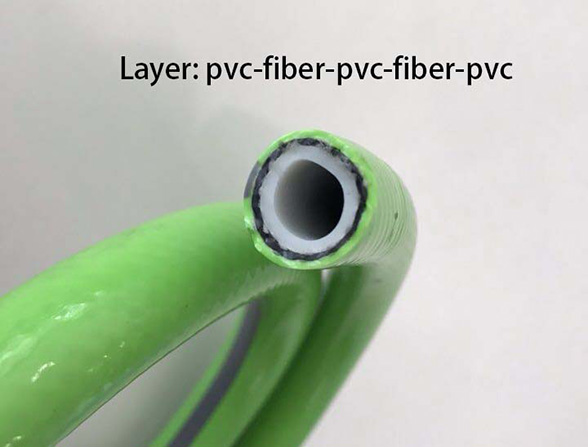

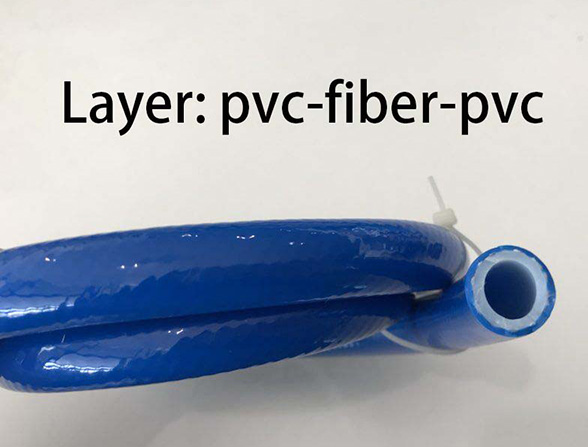

PVC air hose is made of tough PVC materials and high tensile polyester reinforcement,it can work under very high pressure.

Apply to: some pneumatic tools, pneumatic washing apparatus, compressors, engine components, machinery service tools, pesticide spraying apparatus and civil engineering pneumatic hammers

Specifications of PVC Air Hose

Item No.

Type

Hose dimension

WP

BP



I.D

O.D

Wall




Inch

mm

mm

mm

BAR

BAR

PVCAIR-0611

1/4"

6

11

2.5

15

60

PVCAIR-0612

1/4"

6.5

12

2.75

20

60

PVCAIR-0814

5/16"

8.5

14

2.75

20

60

PVCAIR-1016

3/8"

10

16

3

20

60

PVCAIR-1320

1/2"

13

20

3.5

20

60

PVCAIR-1625

5/8"

16

25

4.5

20

60

PVCAIR-1928

3/4"

19

28.5

4.75

17

52

PVCAIR-2534

1"

25

34.5

4.75

16

48

PVCAIR-3244

1-1/4"

32

44

6

15

46

PVCAIR-3850

1-1/2"

38

50

6

15

45

PVCAIR-5064

2"

50

64

7

10

30
