SAE 100 R17

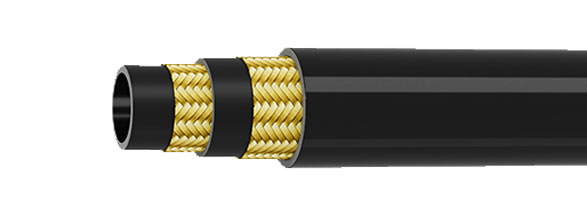

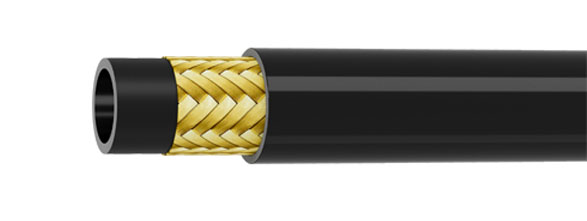

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: one or two high tensile steel wire braids
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃
Applications:
High pressure hydraulic applications and to replace 100R1 where higher pressure and a more flexible hose is required.

Hose ID		W.D.	O.D	W.P		B.P		Min.B.R.	WEIGHT
INCH	MM	MM	MM	BAR	PSI	PSI	BAR	MM	KG/M
1/4	6.2-7.0	10.4-11.1	12.5-13.3	210	3000	12000	840	50	0.19
5/16	7.7-8.5	11.5-12.1	13.8-14.6	210	3000	12000	840	55	0.22
3/8	9.3-10.1	14.0-14.6	16.2-17.0	210	3000	12000	840	65	0.27
1/2	12.3-13.5	17.2-17.8	19.5-20.3	210	3000	12000	840	90	0.46
5/8	15.5-16.7	22.0-22.6	24.3-25.1	210	3000	12000	840	105	0.57
3/4	18.6-19.8	25.1-25.9	27.6-28.4	210	3000	12000	840	125	0.78
1	25.0-26.4	32.6-33.4	35.2-36.0	210	3000	12000	840	150	1.4
