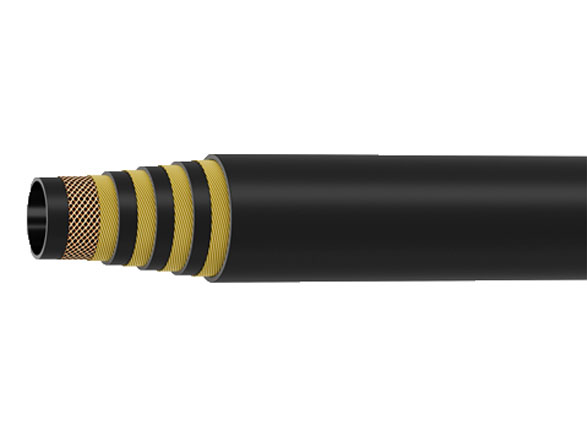

DIN EN856/DIN20023 4SH

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spiral
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃
Applications:
Very high pressure applications used for petroleum based hydraulic fluids

ID		Reinforcement Diameter	Outside Diameter	WP		BP		Min. Bend Radius	Weight
inch	mm	mm	mm	psi	bar	PSI	bar	mm	kg/m
3/4	18.6-19.8	28.3-29.1	31.7-32.5	6000	420	24000	1680	280	1.7
1	25.0-26.4	35.4-36.2	39.2-40.0	5000	380	20000	1520	340	2.5
1-1/4	31.4-33.0	42.2-43.0	46.3-47.1	4700	325	18800	1300	460	3
1-1/2	37.7-39.3	49.0-49.8	54.2-55.0	4200	290	16800	1160	560	3.6
2	50.4-52	63.4-64.2	68.5-69.3	3600	250	14400	1000	700	5
