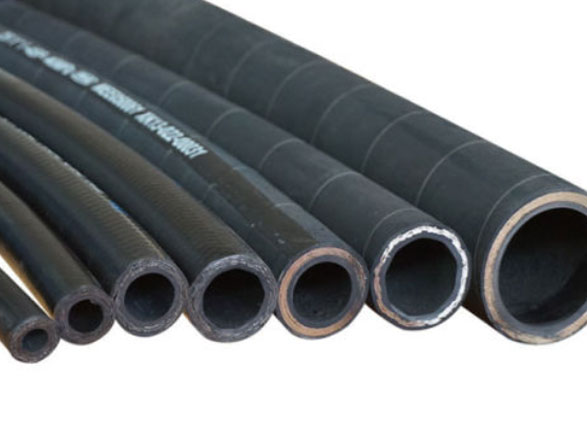

DIN EN853 1SN/SAE 100 R1AT

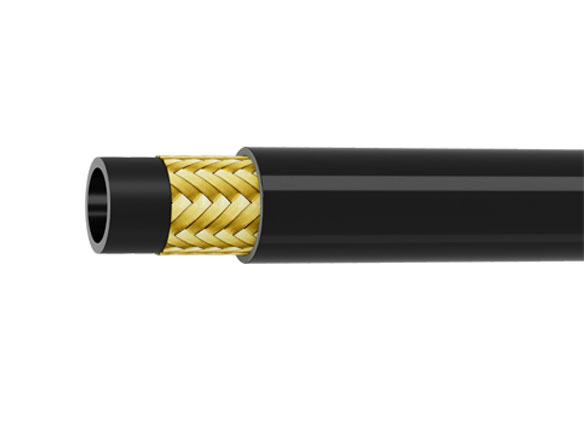

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: single wire braid reinforcement
Cover: oil and weather resistant synthetic rubber
Working Temp.: -40℃ up to +100℃
Applications:
carry hydraulic fluids such as petroleum, mineral oils, emulsion, hydrocarbons, and so on.

Hose ID		Wire OD	Hose OD	WP		BP		Minimum Bend Radius	Weight
inch	mm	mm	mm	Mpa	Psi	Mpa	Psi	mm	Kg/m
3/16	4.8	9.5	11.8	25	3630	100	14280	90	0.19
1/4	6.4	10.8	12.8	22.5	3270	90	12840	100	0.222
5/16	7.9	12.5	14.5	21.5	3120	85	12280	115	0.261
3/8	9.5	14.6	16.8	18	2610	72	10280	130	0.324
1/2	12.7	17.6	19.8	16	2320	64	9180	180	0.418
5/8	15.9	21.1	23.1	13	1890	52	7420	200	0.476
3/4	19	24.7	27	10.5	1530	42	6000	240	0.619
1	25.4	32.5	35	8.8	1280	35	5020	300	0.883
1 1/4	31.8	39.5	43.5	6.3	920	25	3600	420	1.22
1 1/2	38.1	45.8	49.8	5	730	20	2860	500	1.408
2	50.8	59	63	4	580	16	2280	630	1.889
