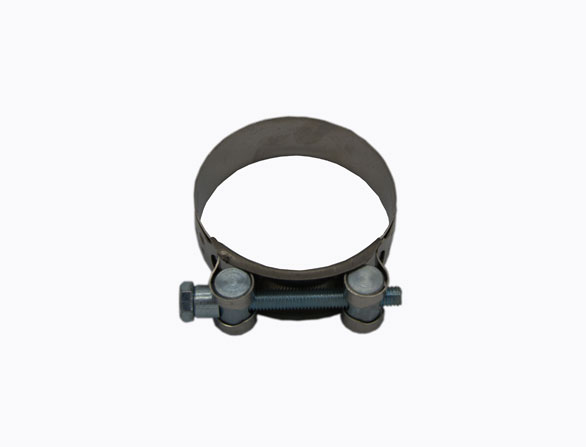

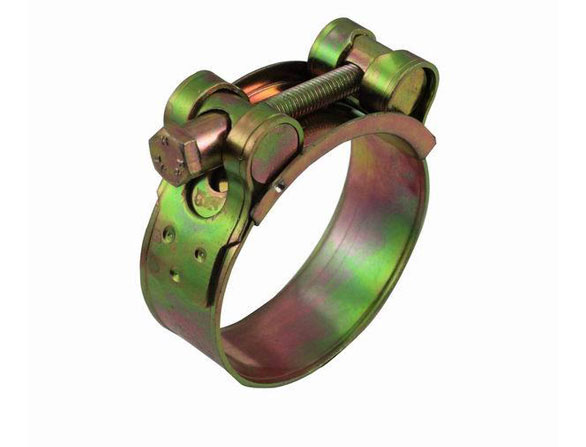

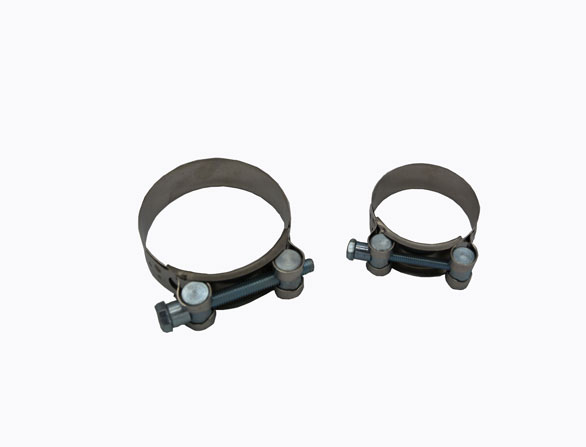

Heavy duty hose clamp (DIN)

Applications
To secure hose couplings to hoses where extra torque is required.

Key Features
•Easy to use.
•Provide extra torque compared to other hose clamps.
•Available in galvanized in carbon steel and stainless steel.

Band Width: 18-30mm

Tightened with T-bolt and hex nut
Band, T-bolt, and nut are made of 304 stainless steel for strength and corrosion resistance.

RANGE

RANGE

BAND WIDTH

PART #

17-19mm

0.67-0.75"

0.708"

CLAMP-HD-1719

19-21mm

0.75-0.83"

0.708"

CLAMP-HD-1921

21-23mm

0.83-0.91"

0.708"

CLAMP-HD-2123

23-25mm

0.91-0.98"

0.708"

CLAMP-HD-2325

25-27mm

0.98-1.06"

0.708"

CLAMP-HD-2527

27-29mm

1.06-1.14"

0.708"

CLAMP-HD-2729

29-31mm

1.14-1.22"

0.787"

CLAMP-HD-2931

31-34mm

1.22-1.34"

0.787"

CLAMP-HD-3134

34-37mm

1.34-1.46"

0.787"

CLAMP-HD-3437

37-40mm

1.46-1.57"

0.787"

CLAMP-HD-3740

40-43mm

1.57-1.69"

0.787"

CLAMP-HD-4043

43-47mm

1.69-1.85"

0.787"

CLAMP-HD-4347

47-51mm

1.85-2.01"

0.787"

CLAMP-HD-4751

51-55mm

2.01-2.17"

0.787"

CLAMP-HD-5155

55-59mm

2.17-2.32"

0.787"

CLAMP-HD-5559

59-63mm

2.32-2.48"

0.787"

CLAMP-HD-5963

63-68mm

2.48-2.68"

0.787"

CLAMP-HD-6368

68-73mm

2.68-2.87"

0.984"

CLAMP-HD-6873

73-79mm

2.87-3.11"

0.984"

CLAMP-HD-7379

79-85mm

3.11-3.35"

0.984"

CLAMP-HD-7985

85-91mm

3.35-3.58"

0.984"

CLAMP-HD-8591

91-97mm

3.58-3.82"

0.984"

CLAMP-HD-9197

97-104mm

3.82-4.09"

0.984"

CLAMP-HD-97104

104-112mm

4.09-4.41"

0.984"

CLAMP-HD-104112

112-121mm

4.41-4.76"

0.984"

CLAMP-HD-112121

121-130mm

4.76-5.12"

0.984"

CLAMP-HD-121130

130-140mm

5.16-5.51"

1.024"

CLAMP-HD-130140

140-150mm

5.51-5.91"

1.024"

CLAMP-HD-140150

150-162mm

5.91-6.38"

1.024"

CLAMP-HD-150162

162-174mm

6.38-6.85"

1.024"

CLAMP-HD-162174

174-187mm

6.85-7.36"

1.024"

CLAMP-HD-174187

187-200mm

7.36-7.87"

1.024"

CLAMP-HD-187200

200-213mm

7.87-8.39"

1.024"

CLAMP-HD-200213

213-226mm

8.39-8.9"

1.024"

CLAMP-HD-213226

226-239mm

8.9-9.41"

1.024"

CLAMP-HD-226239

240-252mm

9.45-9.92"

1.024"

CLAMP-HD-240252
