STEAM HOSE

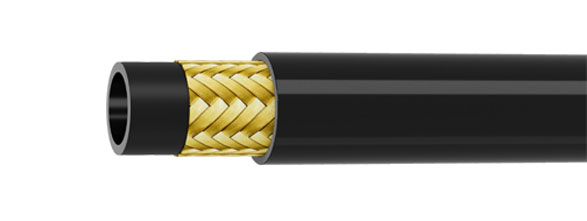

Hose Construction:
Inner tube: EPDM superheated resistant synthetic rubber
Reinforcement: one or two high tensile steel wire braids
Cover: EPDM synthetic rubber
Working Temp.: -40℃ up to +220℃
Applications:
To convey the saturated steam at specified steam pressure for use in steel mills, thermal panits, oil paint, fertilizer and heavy engineering industries.

wire layer	Inside Diameter		Outer Diameter	WP		BP		Min.B.R.
wire layer	inch	mm	mm	psi	Mpa	Psi	Mpa	mm
one wire layer	1/4	6.3	14.1	3260	22.5	13040	90	100
	5/16	8	15.7	3120	21.5	12480	85	115
	3/8	10	18.1	2610	18	10440	72	130
	1/2	12.5	21.4	2320	16	9280	64	180
	5/8	16	24.5	1885	13	7540	52	200
	3/4	19	28.5	1520	10.5	6080	42	240
	1	25	36.6	1280	8.8	5120	35	300
	1-1/4	31.5	44.8	910	6.3	3640	25	420
	1-1/2	38	52.1	725	5	2900	20	500
	2	51	65.5	780	4	3120	16	630
two wire layer	1/4	6.3	15.7	5800	40	23200	160	100
	5/16	8	17.3	5075	35	20300	140	115
	3/8	10	19.7	4785	33	19140	132	130
	1/2	12.5	23	3990	27.5	15960	110	180
	5/8	16	26.2	3625	25	14500	100	200
	3/4	19	30.1	3120	21.5	12480	85	240
	1	25	38.9	2390	16.5	9560	65	300
	1-1/4	31.5	49.5	1810	12.5	7240	50	420
	1-1/2	38	55.9	1305	9	5220	36	500
	2	51	68.6	1160	8	4640	32	630
