DIN EN 857 1SC

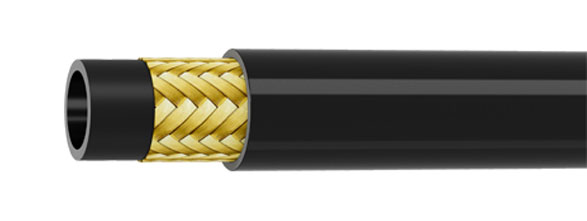

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃
Applications:
High pressure service with tight bends for petroleum and water based hydraulic fluids.

DN	Hose I.D		Hose O.D	WP		BP		Min.B.R.	Weight
DN	inch	mm	mm	Bar	psi	Bar	psi	mm	kg/m
6	1/4	6.4	12.2	225	3265	900	13050	75	0.18
8	5/16	7.9	13.5	215	3120	860	12470	85	0.21
10	3/8	9.5	15.6	180	2610	720	10440	90	0.28
13	1/2	12.7	19	160	2320	640	9280	130	0.33
16	5/8	15.9	22.4	130	1885	520	7540	150	0.41
19	3/4	19	26	105	1525	420	6090	180	0.52
25	1	25.4	33.3	88	1275	352	5104	230	0.78
