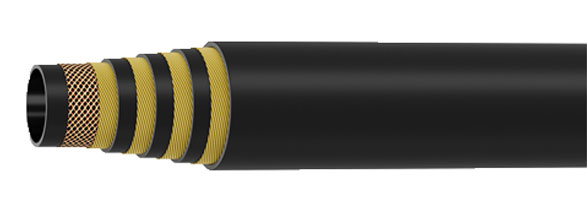

SAE 100 R12

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spiral
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +100℃
Applications:
Very high pressure applications used for petroleum based hydraulic fluids

Inside Diameter		Reinforcement Diameter	Outside Diameter	WP		BP		Min. Bend Radius	Weight
inch	mm	mm	mm	psi	bar	PSI	bar	mm	kg/m
3/8	9.3-10.1	17.3-17.9	19.9-20.7	4000	280	16000	1120	125	0.7
1/2	12.3-13.5	20.8-21.4	23.4-24.2	4000	280	16000	1120	180	0.84
5/8	15.5-16.7	24.5-25.1	27.1-27.9	4000	280	16000	1120	200	1.1
3/4	18.6-19.8	27.8-28.4	30.4-31.2	4000	280	16000	1120	240	1.33
1	25.0-26.4	35.1-35.7	38.3-39.1	4000	280	16000	1120	300	1.85
1-1/4	31.4-33.0	44.1-44.7	47.3-48.1	3000	210	12000	840	420	2.65
1-1/2	37.7-39.3	50.1-50.7	53.5-54.3	2500	175	10000	700	500	3.2
2	50.4-52.0	62.7-63.3	66.9-67.7	2500	175	10000	700	630	4.2
