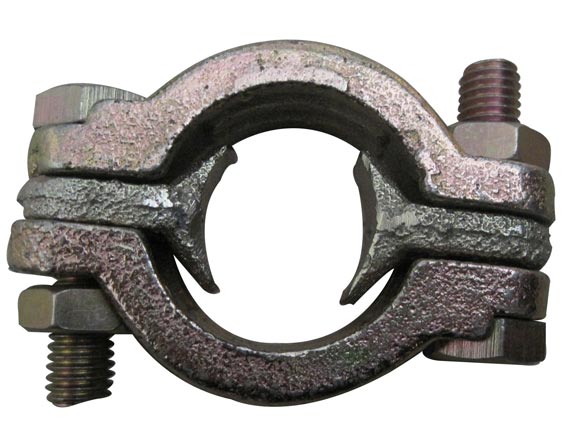

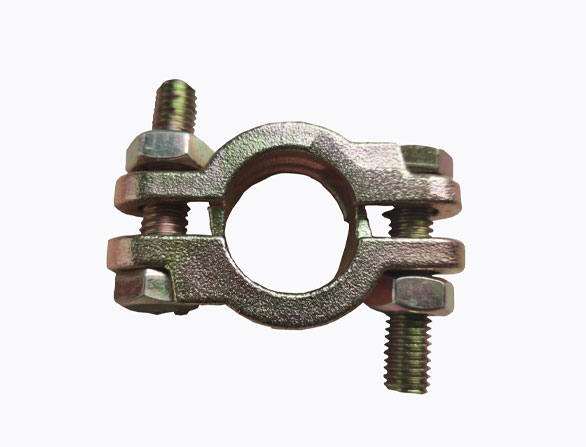

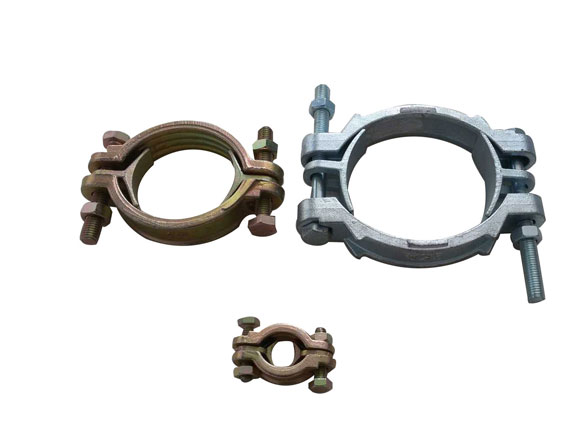

Double bolt clamp / Double bolt clamp with saddles
Application: It's ideal for clamping applications where additional torque is required. It's commonly used to secure hoses or pipes onto couplings and can be used as a temporary or permanent solution. Our company, a professional wire hose clamp maker, will give you ideal hose pipe clamp products, including double bolt hose clamp.
Material: Plated Iron
Features:
Inner surface has dual gripping ridges. Bolt lugs are reinforced to prevent bending out of alignment. Torque values for clamps are based on dry bolts. The use of lubricant on bolts will adversely effect clamp performance.


INCH

MM

PART #

21/32”~7/8”

20-22

DBC22

7/8”~1-9/64”

22-29

DBC29

1-5/32”~1-11/32”

27-32

DBC34

1-5/16”~1-19/32”

32-39

DBC40

1-5/8”~1-15/16”

39-49

DBC49

1-7/8~2-3/8”

48-60

DBC60

2-3/8”~3-7/16”

60-70

DBC76

3-1/2”~3-11/16”

77-94

DBC94

3-3/4”~4-1/2”

94-115

DBC115

3-1/2”~4”

88-96

DBC400

4-1/16”~4-5/8”

96-103

DBC463

4-11/16”~5-1/4”

103-125

DBC525

5”~5-1/2”

114-128

DBC550

5-5/16”~6-1/6”

130-144

DBC600

6-1/8”~6-7/8”

151-165

DBC675

6-15/16”~7-5/8”

165-192

DBC769

7-11/16”~8-3/16”

195-208

DBC818

8-1/4”~8-7/8”

210-225

DBC875

8-15/16”~9-7/8”

227-239

DBC988

9-15/16~11-3/8”

252-289

DBC1125

11-3/16”~13”

300-330

DBC1275
