KC Nipple (King Combination Nipple) is a threaded hose fitting used to connect hoses to pipes, valves, or equipment. It is commonly found in low-pressure suction and discharge lines – such as agricultural irrigation, construction dewatering, and industrial fluid transfer. The threaded ends match the hose ID (e.g. a 4" nipple fits a 4" hose), making connections quick and reliable.
As a manufacturer, we produce our KC nipples in an ISO 9001-certified facility, with strict quality control from raw material inspection through to finished products. Our KC nipples are exported to the US, Canada, Europe, and Russia, where they are trusted for their durability and consistent performance in demanding applications.
The working pressure of a KC nipple cannot be determined by the fitting alone. It depends on the nipple size and material, hose construction and pressure rating, end connection, clamp or ferrule system, transferred medium, operating temperature, and installation conditions.
The maximum allowable working pressure of a complete hose assembly must not exceed the rating of its lowest-rated component. For example, even if the KC nipple has a higher pressure capability, the finished assembly must be operated according to the lower rating of the hose, clamp, thread connection, or other component.
Larger KC nipples may have lower recommended working pressures than smaller sizes. Suction and vacuum performance should also be evaluated separately from positive working pressure. Pressure surges, vibration, hose movement, and temperature changes may further reduce the safe operating limit.
The values in the table below are general reference ratings only. Please provide the hose size, hose type, connection method, operating medium, temperature, and required working pressure so that SEAPEAK can recommend a suitable KC nipple and assembly method.
Size | Material Options | Thread Types | End Configuration | Surface Finish | Working Pressure (PSI) |

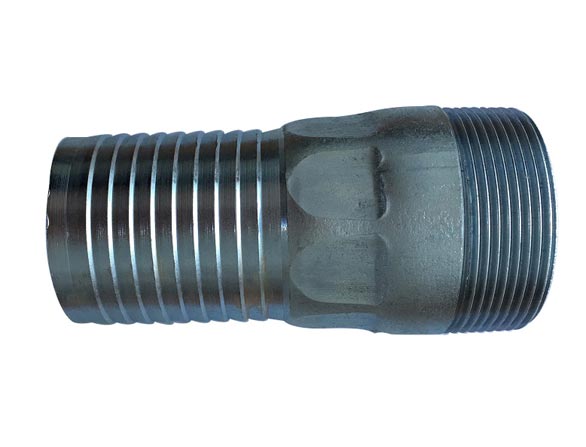

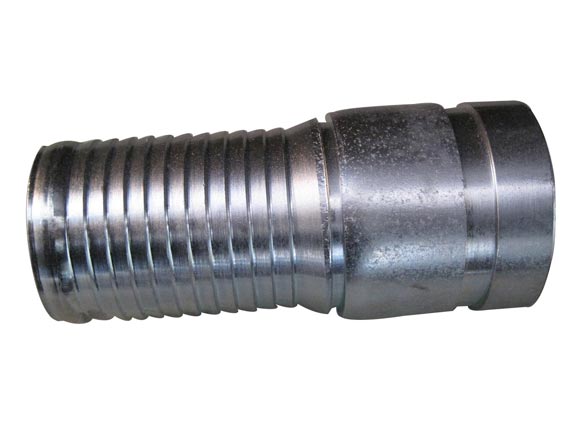

1/8" – 12" | Carbon steel, Stainless steel (304/316), Brass, Aluminum | NPT (standard), BSP (upon request) | Hexagon / Grooved / Ferrule | Zinc-plated, Unplated | 2" (250), 3" (125), 4" (100), 6" (75) |
KC nipples are commonly used in low-pressure suction and discharge lines across a range of industries. Typical applications include:
Agricultural irrigation: Connecting hoses to pumps, pipes, and sprinkler systems.
Construction dewatering: Transferring water from excavation sites and trenches.
Industrial fluid transfer: Moving water, slurry, and other non-corrosive liquids in plant operations.
Mining and quarrying: Heavy-duty suction and discharge of water and slurries.
General water transfer: Temporary or permanent lines for water supply and drainage.
For applications requiring specific pressure ratings, chemical resistance, or custom thread configurations, please contact us with your requirements.
