Pressure Wash Hose
Hose
pressure washer hose 1

Pressure Wash Hose

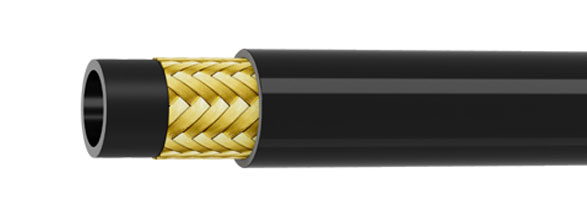

Hose Construction:
Inner tube:  synthetic rubber
Reinforcement: one/two braid of high tensile steel wire
Cover: weather and abrasion resistant synthetic rubber
Working Temp.: -40℃ to +100℃
Application:
Hose suitable to for pressure washer, industrial cleaning system etc.
  • pressure washer hose 1
  • pressure washer hose 2
I.D. O.D. W.P. B.P. Min B.R. Weight
DN mm inch mm bar psi  bar psi mm Kg/m
One wire layer 6 6.4 1/4” 13.1 250 3650  1000 14600 100 0.21
8 7.9 5/16” 14.7 250 3650 1000 14600 110 0.26
10 9.5 3/8” 17.1 250 3650 1000 14600 120 0.36
12 12.7 1/2” 20.4 210 3100 840 12100 160 0.45
Two wire layer 6 6.4 1/4” 14.7 400 5800 1600 23200 100 0.37
8 7.9 5/16” 16.3 400 5800 1600 23200 110 0.435
10 9.5 3/8” 18.7 400 5800 1600 23200 120 0.556
12 12.7 1/2” 21.9 300 4350  1200 17400 160 0.645
