SAE 100 R8
Hose
sae 100 r8 1

SAE 100 R8

Inner tube: nylon
Reinforcement: suitable fiber braid
Cover: polyurethane
Working temperature: -40℃~+100℃
Applications:
Automobile, engineering machinery. Althe, agricutural machines, mining, spurting the oil paint, Navigation & space flight, cooling and other hydraulic control system.
Contact Us
  • sae 100 r8 1

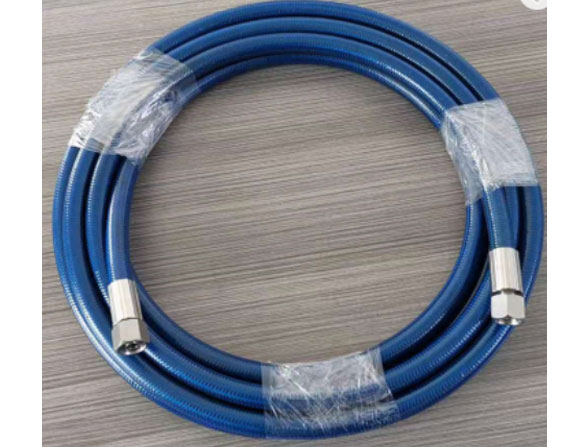

  • sae 100 r8 2
SIZE ID OD W.P B.P Min B.R W.T
mm inch Min Max Max Mpa Psi Mpa Psi inch mm Kg/m
5 3/16 4.6 5.4 14.6 35 5075 140 20300 3.54 90 0.086
6.3 1/4 6.2 7 16.8 35 5075 140 20300 3.94 100 0.097
10 5/16 9.3 10.3 20.3 28 4060 112 16240 4.92 125 0.178
12.5 3/8 12.3 13.5 24.6 24.5 3550 98 14210 7.09 180 0.216
16 1/2 15.5 16.7 29.8 19.2 2780 77 11165 8.07 205 0.312
19 5/8 18.6 19.8 33 15.7 2275 63 9135 9.45 240 0.36
25 3/4 25 26.4 38.6 14 2030 56 8120 11.81 300 0.505
