Gear Clamp

  • gear-clamp-1.jpg
  • gear-clamp-2.jpg
  • Gear-Clamp-1.jpg
  • Gear-Clamp-2.jpg

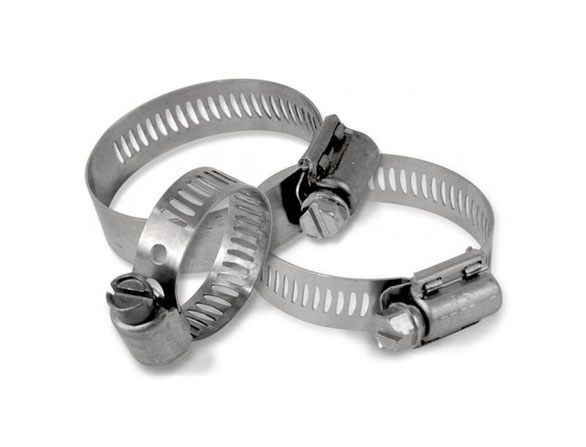

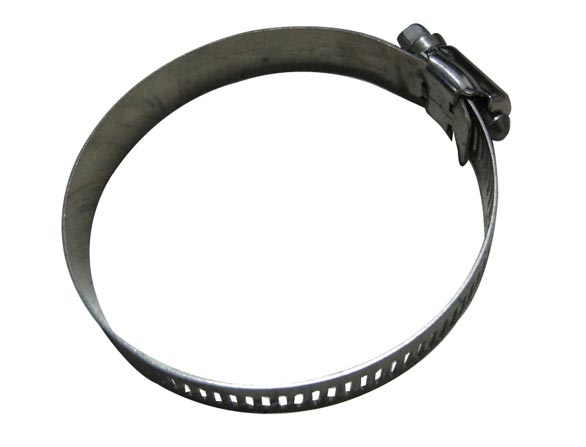

Worm Drive Hose Clamps-Perforation (SAE)
Material:
Band and housing: SAE 200/300/400 grade Stainless Steel
Screw: 8mm hex-head, galvanized carbon steel
Band width: 12.7mm or 14.2mm

Worm Drive Hose Clamps-Mini Type (SAE)
Band width: 8mm
Band and housing: SAE 200/300/400 grade Stainless Steel
Screw: carbon steel plated zinc, 6.35mm/6.0mm lengthen hex-head.

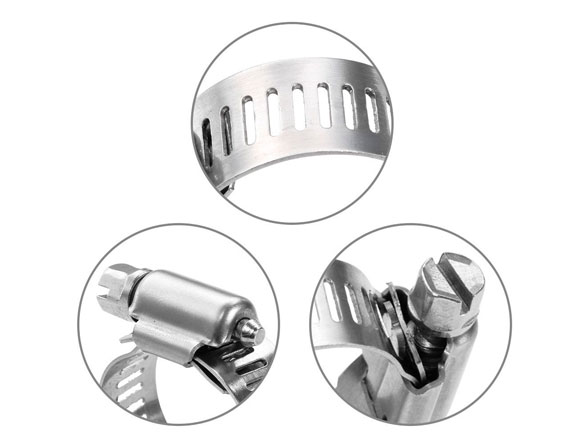

Construction:
-Four-piece construction
-Screw design: hex head
-SAE 200/300/400 grade band and housing
-Screw: hex-head, galvanized carbon steel
Interlocked worm gear hose clamps help secure many types of hoses, including pneumatic and exhaust hoses. A general-purpose hose clamp is interlocked to prevent shearing, while clamps used for exhaust have no holes, preventing marring of the hose and fumes escaping. Stainless steel worm gear clamps resist rust and corrosion and are useful in humid or damp conditions.

SIZE

MIN SIZE

MAX SIZE

PART #

3/8"

0.38"

0.88"

CLAMP-G-06

1/2"

0.44"

1"

CLAMP-G-08

5/8"

0.56"

1.06"

CLAMP-G-10

3/4"

0.56"

1.25"

CLAMP-G-12

1"

0.69"

1.5"

CLAMP-G-16

1 1/4"

0.75"

1.75"

CLAMP-G-20

1 1/2"

1.06"

2'

CLAMP-G-24

1 3/4"

1.31"

2.25"

CLAMP-G-28

2"

1.56"

2.5"

CLAMP-G-32

2 1/4"

1.81"

2.75"

CLAMP-G-36

2 1/2"

2.06"

3"

CLAMP-G-40

2 3/4"

2.31"

3.25"

CLAMP-G-44

3"

2.56"

3.5"

CLAMP-G-48

3 1/4"

2.81"

3.75"

CLAMP-G-52

3 1/2"

3.06"

4"

CLAMP-G-56

3 3/4"

3.31"

4.25"

CLAMP-G-60

4"

2.5"

4.5"

CLAMP-G-64

4 1/2"

3"

5"

CLAMP-G-72

5"

3.5"

5.5"

CLAMP-G-80

5 1/4"

3.75"

5.75"

CLAMP-G-84

5 1/2"

4"

6"

CLAMP-G-88

6"

4.5"

6.5"

CLAMP-G-96

6 1/2"

5"

7"

CLAMP-G-104

7"

5.75"

7.75"

CLAMP-G-116

8"

6.5"

8.5"

CLAMP-G-128

9 1/2"

2"

10"

CLAMP-G-152

11 3/4"

10.25"

12.25"

CLAMP-G-188

12 1/2"

11"

13'

CLAMP-G-200

13 1/4"

11.75"

13.75"

CLAMP-G-212

14"

12.5"

14.5"

CLAMP-G-224

24 3/8"

22.88"

24.88"

CLAMP-G-390
