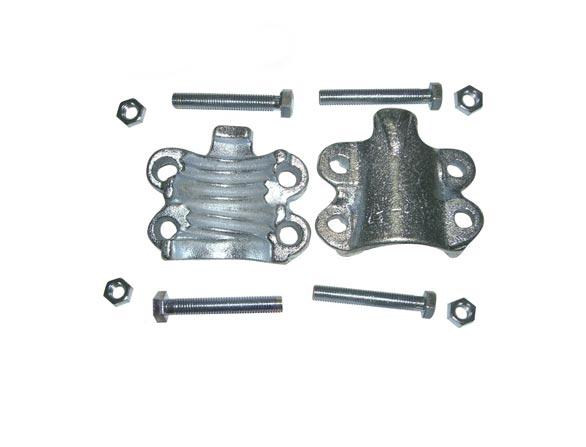

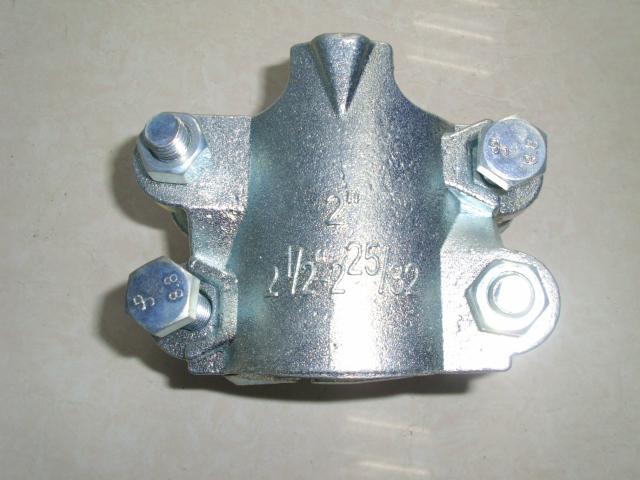

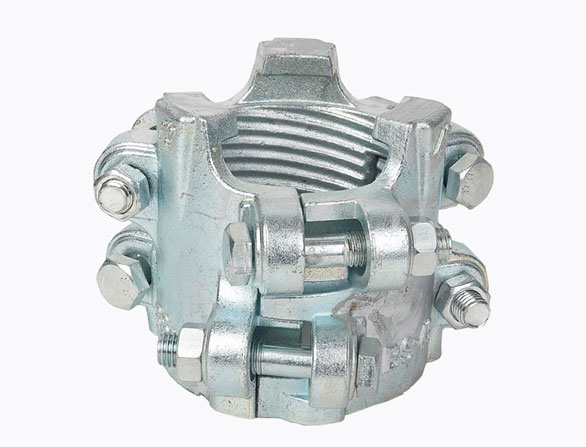

Interlocking Clamp 2 & 4 & 6 Bolts

Application: A bolted interlocking clamp is the most secure way to install universal coupling or ground joint type hose couplings. . The top of the clamp has fingers that interlock with a ring on the hose coupling. The clamp features 2, 4, or 6 bolts depending on hose diameter. The inside of the clamp shells have serrations that press into the cover of the hose for increased grip. Hose can change in diameters over long term pressurization. The bolted clamp allows for adjustment. Torque should be checked on these clamps to ensure that the coupling stays tight.


(Zinc Plated Ductile Iron Interlock Clamp, Hose Clamp for Universal Coupling and Ground Joint Coupling)
Bolted interlocking hose clamps, or Boss Clamps, are the most secure method for installing matched interlocking couplings such as ground joint type and universal type.
Type: 2 Bolt Use with Universal Coupling/2 Bolt, 4 Bolt and 6 Bolt Use with Ground Joint Coupling


SIZE

TYPE

RANGE

REMARKS


1

3/8"

CD

11/16"--7/8"

FOR AIR HOSE


2

1/2"

A4

1"--1-3/16"

3

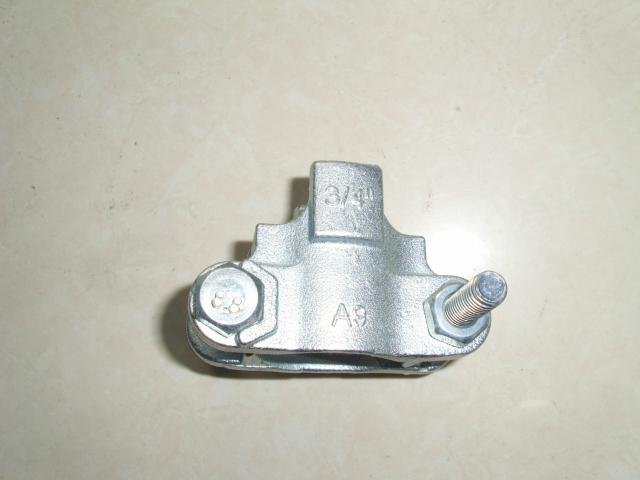

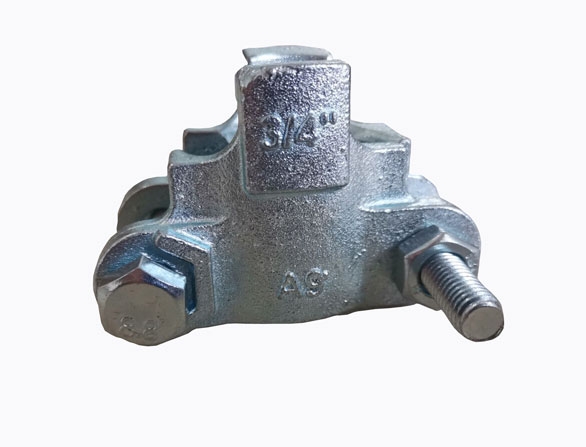

3/4"

A9

1-1/8"--1-5/16"

4

1"

A10

1-5/6"--1-1/2"




5

1/2"

B4

15/16"--1-1/16"

FOR STEAM HOSE
