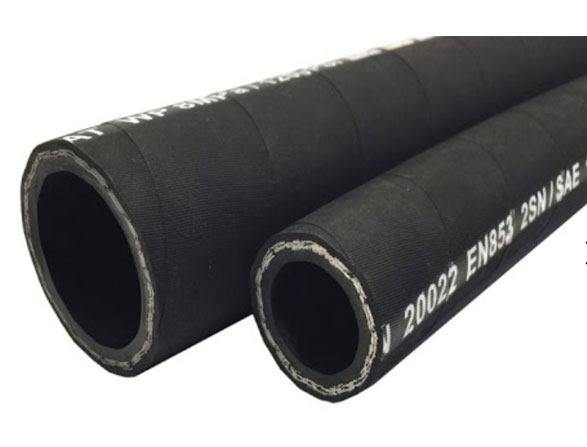

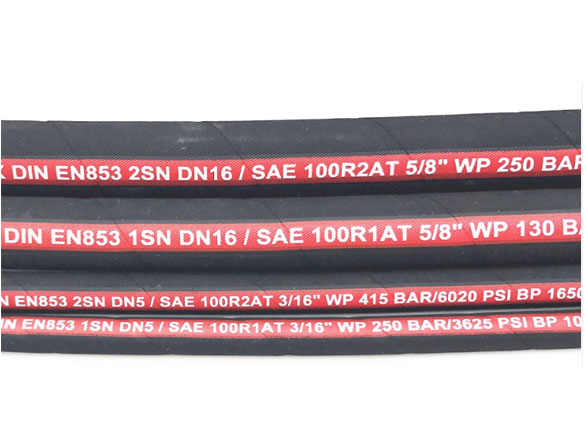

DIN EN 853 2SN / SAE 100 R2AT

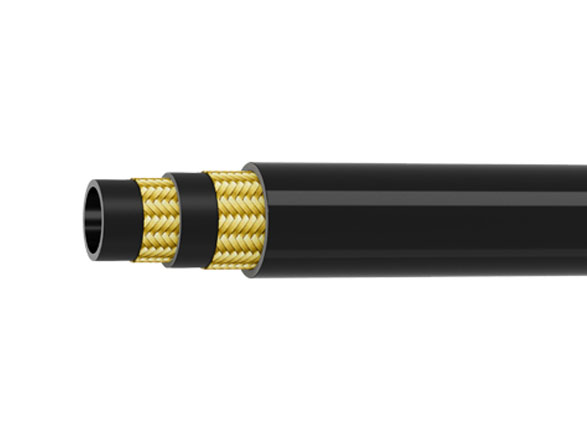

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braids
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃
Applications:
High pressure hydraulic oil lines used in construction, machine tool and agriculture application using petroleum or water based hydraulic fluids.

Inside Diameter		W.D.	Outside Diameter	Working Pressure		Proof Pres sure	Burst Pres sure	Min.B.R.	Wei ght
inch	mm	mm	mm	psi	bar	bar	bar	mm	kg/m
3/16	4.6-5.4	10.6-11.7	13.3-14.1	6018	415	996	1660	90	0.3
1/4	6.2-7.0	12.5-13.1	14.4-15.2	5800	400	960	1600	100	0.3
5/16	7.7-8.5	14.2-14.8	16.3-17.1	5075	350	840	1400	115	0.36
3/8	9.3-10.1	16.2-16.8	18.3-19.1	4785	330	792	1320	130	0.49
1/2	12.3-13.5	19.4-20.0	21.5-22.3	3988	275	660	1100	180	0.56
5/8	15.5-16.7	22.8-23.4	25.0-25.8	3625	250	600	1000	200	0.6
3/4	18.6-19.8	26.4-27.2	28.6-29.4	3118	215	516	860	240	0.83
1	25.0-26.4	33.9-34.7	36.5-37.1	2393	165	396	660	300	1.22
1-1/4	31.4-33.0	42.8-43.6	45.3-46.1	1813	125	300	500	420	1.91
1-1/2	37.7-39.3	42.9-50.0	51.7-52.5	1305	90	216	360	500	2.17
2	50.4-52.0	61.9-62.7	64.4-65.2	1160	80	192	320	630	2.74
