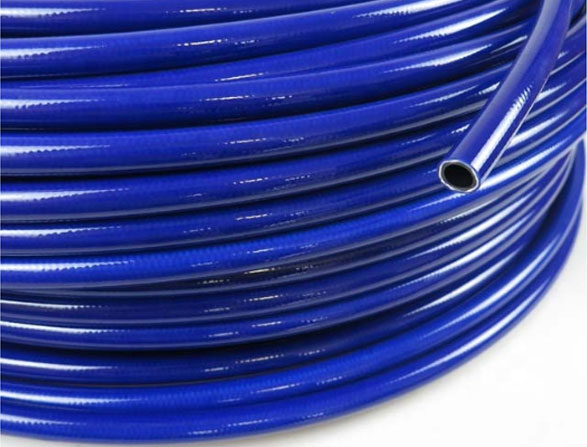

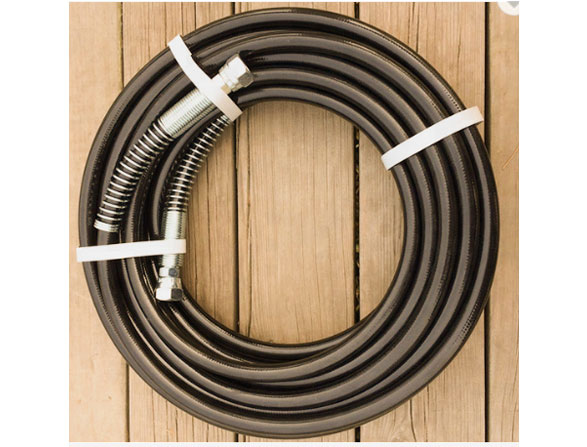

SAE 100 R7/DIN EN855 R7

Inner tube: nylon
Reinforcement: suitable fiber braid
Cover: polyurethane
Working temperature: -40℃~+100℃
Applications:
Automobile, engineering machinery. Althe, agricutural machines, mining, spurting the oil paint, Navigation & space flight, cooling and other hydraulic control system.

DN	Hose I.D		Hose O.D	WP		BP		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	Bar	psi	Bar	psi	mm	kg/m	metres
3	1/8	3.5	8.4	230	3340	920	13340	35	0.058	>50
5	3/16	4.8	10.3	210	3045	840	12200	35	0.075	>50
6	1/4	6.3	11.7	192	2780	770	11165	50	0.09	>50
8	5/16	7.9	14.3	175	2535	700	10150	50	0.13	>50
10	3/8	9.5	15.9	157	2275	630	9135	80	0.16	>50
13	1/2	12.7	19.8	140	2030	560	8120	100	0.22	>50
16	5/8	15.9	23.3	105	1520	420	6090	160	0.26	>50
19	3/4	18.9	26.5	87	1260	350	5075	180	0.32	>50
25	1	25.4	34	70	1015	280	4060	250	0.4	>50
