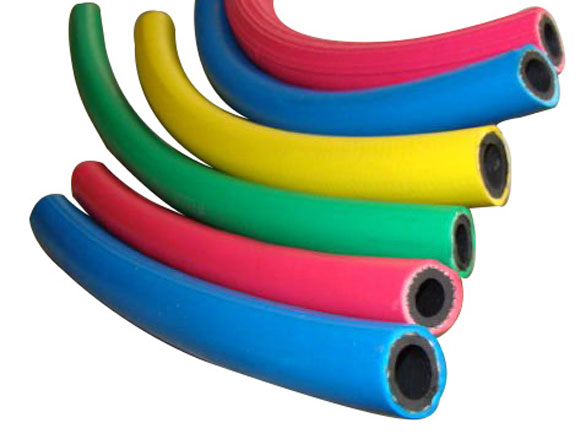

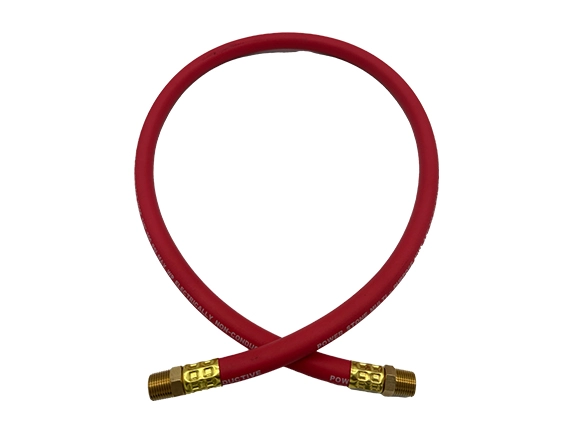

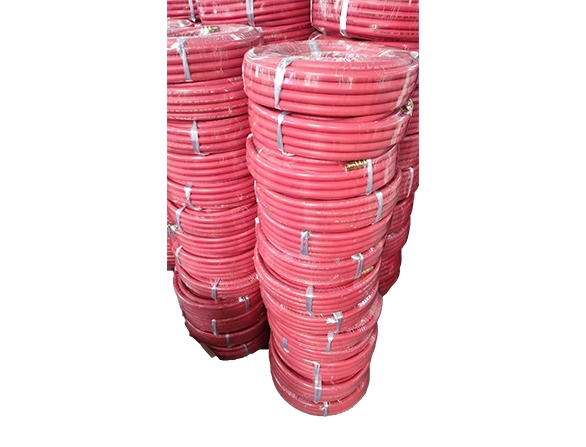

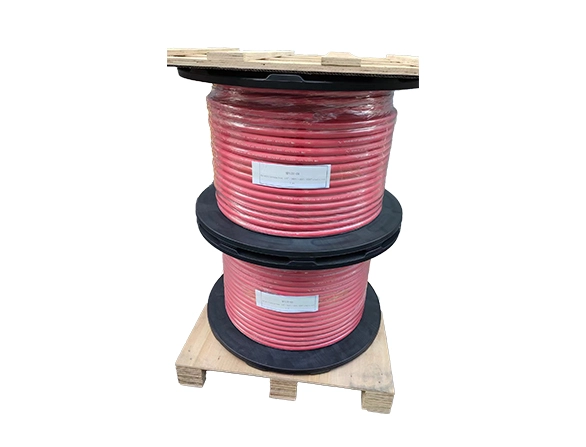

Multi-purpose Hose 300psi

Construction:
Tube: Rubber or TPR(rubber&pvc),oil resistance.
Reinforcement: 1ply or 2ply polyester thread braiding.
Cover: Rubber or TPR(rubber&pvc),oil resistance. black, yellow, red, blue, and so on.

Application:
For air, oil and medium grade fuels used in construction, shipyards, mining and agriculture.

Temperature:
-40℃ (-104°F) to 80℃ (+176°F)

Characteristics:
Oil mist resistant tube and cover
Ozone and weather resistant.
Resistant to ultra-violet(UV)

Specification of Rubber Multipurpose Hose

I.D		O.D	W.P		B.P		L
Inch	mm	mm	bar	psi	bar	psi	m	ft
3/16"	4.8	12	20	300	60	900	100	330
1/4"	6.3	13	20	300	60	900	100	330
5/16"	7.9	15	20	300	60	900	100	330
3/8"	9.5	17	20	300	60	900	100	330
1/2"	12.7	21	20	300	60	900	100	330
5/8"	15.9	25	20	300	60	900	100	330
3/4"	19	29	20	300	60	900	100	330
1"	25.4	37	20	300	60	900	100	330
1-1/4"	31.8	44	15	225	45	675	60	200
1-1/2"	38.1	54	15	225	45	675	60	200
2"	50.8	66	15	225	45	675	60	200

Specification of TPR(rubber&pvc mixed) Multipurpose Hose

I.D		O.D	W.P		B.P		L
Inch	mm	mm	bar	psi	bar	psi	m	ft
1/4"	6	12	20	300	60	900	100	330
5/16"	8	15	20	300	60	900	100	330
3/8"	10	17	20	300	60	900	100	330
1/2"	13	22	20	300	60	900	100	330
5/8"	16	25	20	300	60	900	100	330
3/4"	19	28	20	300	60	900	100	330
1"	25	35	20	300	60	900	100	330
1-1/4"	31.8	44	15	225	45	675	60	330
1-1/2"	38.1	54	15	225	45	675	60	200
2"	50.8	66	15	225	45	675	60	200
