Spiral Clamp
Hose Fittings
Spiral Clamp

Spiral Clamp

  • Spiral Clamp
  • Spiral Clamp
  • Spiral Clamp
  • Spiral Clamp
  • Spiral Clamp

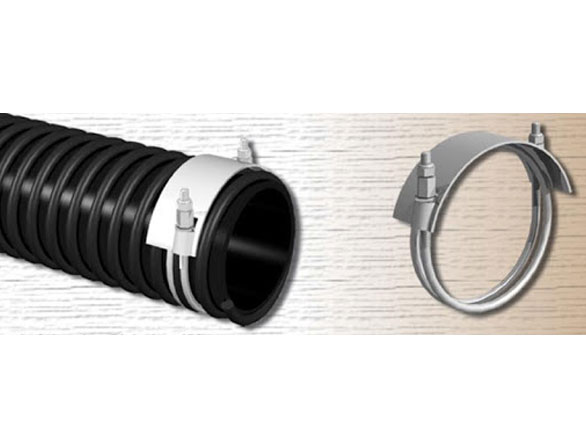

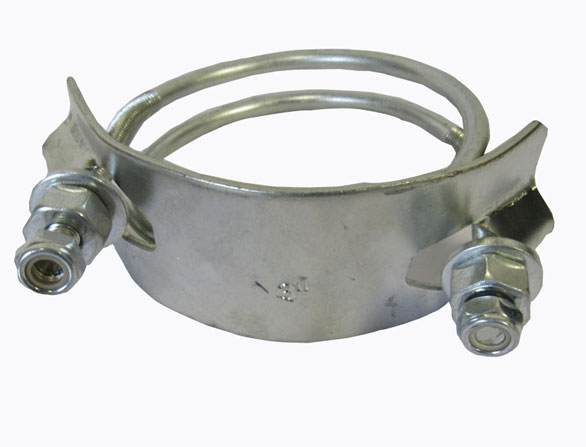

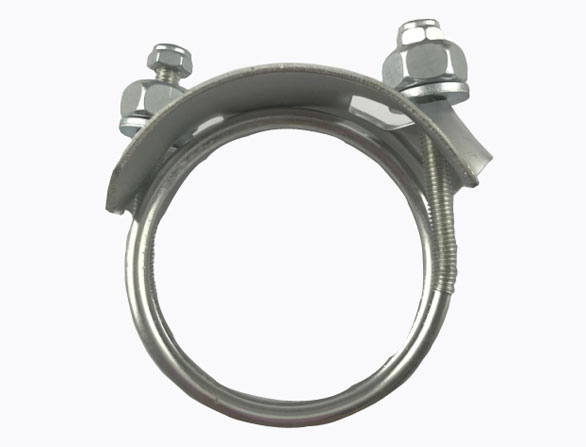

Spiral Clamps made from plated steel coming in either clockwise (right hand) or counter clock wise (left hand) styles. They' re used on convoluted cover hose.
To determine which style clamp is needed for your hose look at the end of the hose, if the helix spirals in a clockwise direction away from you (along the hose), a clockwise clamp is needed.

Application: Hoses with the convoluted outer cover needs a spiral clamp that the wire drops into the groove of the Convoluted Cover for secure clamping.
Spiral Clamps are for use on convoluted cover hose. Our spiral clamps come in both clockwise and counter clockwise directions.
Material: plated steel


SPIRAL CLAMP


ANTICLOCKWISE

CLOCKWISE

SIZE

PART #

PART #

1.5"

SPCLAPL-150

SPCLAPR-150

2"

SPCLAPL-200

SPCLAPR-200

2.5"

SPCLAPL-250

SPCLAPR-250

3"

SPCLAPL-300

SPCLAPR-300

4"

SPCLAPL-400

SPCLAPR-400

5"

SPCLAPL-500

SPCLAPR-500

6"

SPCLAPL-600

SPCLAPR-600

8"

SPCLAPL-800

SPCLAPR-800
