Performed Clamp
BEST IN CLASS RUBBER HOSE
Hose Fittings
Hose
News and information

Performed Clamp

Performed Clamp
  • Performed Clamp

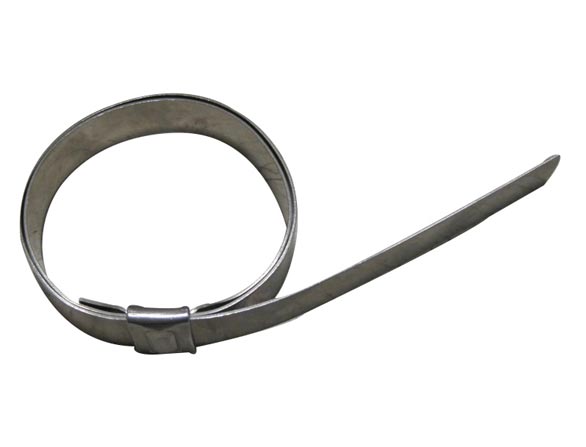

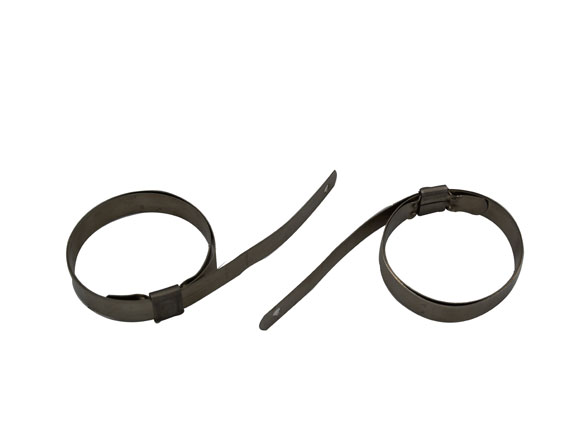

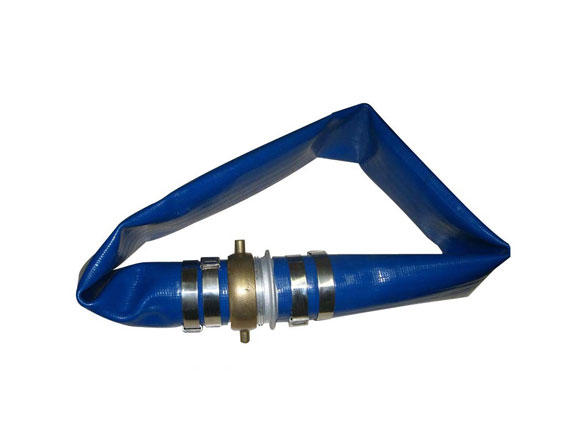

Performed clamps are used in conjunction with any of our center punch tools; they provide a secure, quick and easy installation method for on-site "non-critical application" repairs (NOT for use with steam, large bore air hoses, hazardous gases, or other critical applications - must be installed with a fully trained assembler). They offer a Smooth Seal I.D. which is designed for use on all hoses, including thin walled layflat style hose, as they ensure a 360° closure around the hose being clamped.

Preformed Band Clamps/straps offer a smooth inner diameter and provide the highest strength capability.
Band width: 1/2”

Advantage:
Double wrapped 201SS for superior strength
Unique lock formed under full tension maximizes tightness
Thicker buckle
Smooth inside diameter designed to eliminate leak paths
Buckle hood protects lock from snags

PREFORMED CLAMP

SIZE

PART #

HOSE I.D.

BAND WIDTH

1"

CLAMP-PRE-1

1"

1/2"

1 1/4"

CLAMP-PRE-1 1/4

1 1/4"

1/2"

1 1/2"

CLAMP-PRE-1 1/2

1 1/2"

1/2"

1 3/4"

CLAMP-PRE-1 3/4

1 3/4"

1/2"

2"

CLAMP-PRE-2

2"

1/2"

2 1/4"

CLAMP-PRE-2 1/4

2 1/4"

1/2"

2 1/2"

CLAMP-PRE-2 1/2

2 1/2"

1/2"

2 3/4"

CLAMP-PRE-2 3/4

2 3/4"

1/2"

3"

CLAMP-PRE-3

3"

1/2"

3 1/2"

CLAMP-PRE-3 1/2

3 1/2"

1/2"

4"

CLAMP-PRE-4

4"

1/2"

4 1/2"

CLAMP-PRE-4 1/2

4 1/2"

1/2"

5"

CLAMP-PRE-5

5"

1/2"

6"

CLAMP-PRE-6

6"

1/2"
