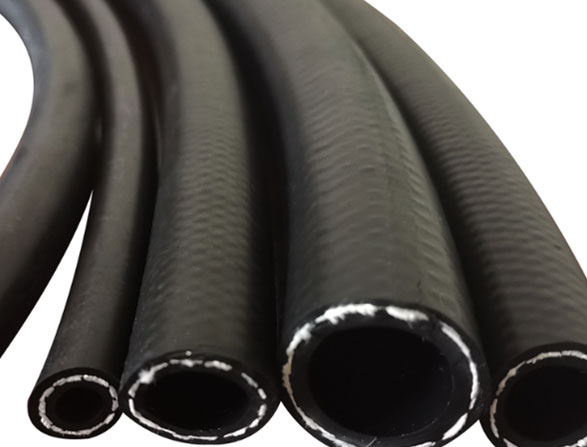

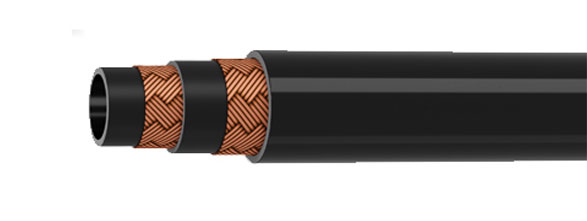

SAE 100 R3

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: two high tensile fiber braids
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +100℃
Applications:
To deliver low pressure petroleum and water based hydraulic fluids such as mineral oil, glycol, lubricating oil, emulsion, hydricarbon.

I.D		T.D.	O. D	W.P.		Test Pressure	B.P.	Min.B.R.	Weight
I.D		T.D.	O. D	W.P.		Test Pressure	B.P.		Weight
inch	mm	mm	mm	psi	bar	bar	bar	mm	kg/m
3/16	4.5 - 5.4	6.5- 9	11.9 - 13.5	1493.5	103	207	41.4	70	0.14
1/4	6.1 - 7.0	6.5 -9.1	13.5 - 15.1	1247	86	172	345	76	0.18
5/16	7.6 - 8.5	8.2 - 10.7	16.7 - 18.3	1203.5	83	165	331	102	0.25
3/8	9.2- 10.1	8.2 - 10.6	18.3 - 19.8	1131	78	155	310	102	0..27
1/2	12.4-13.5	9.5 -12.2	23.0 - 24.6	1000.5	69	137	276	127	0.39
5/8	15.6-16.7	9.5 - 12.2	26.2 - 27.8	870	60	121	241	140	0.55
3/4	18.7-19.8	11.2 - 13.8	31.0 - 32.5	754	52	103	207	152	0.67
1	25.1-26.2	11.8 - 13.1	36.9 - 39.3	565.5	39	78	155	203	0.81
1-1/4	31.4-32.9	11.5 - 13.1	42.9 - 46.0	377	26	52	103	254	0.92
