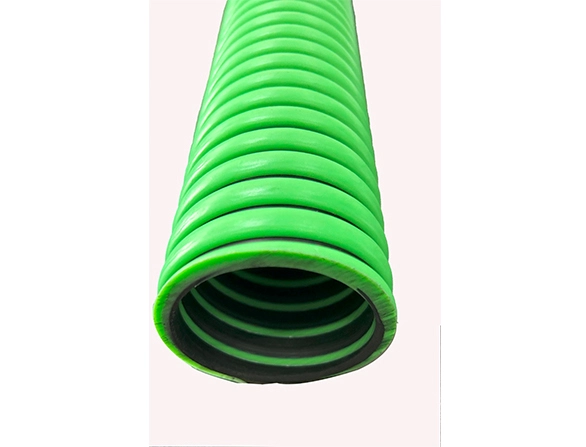

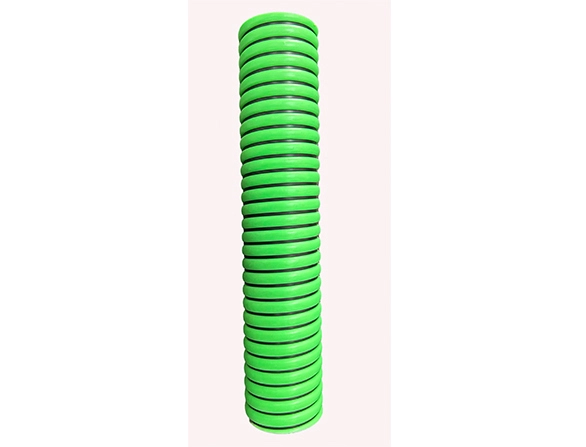

Our EPDM suction hose is made of EPDm tube with PE helix.
The helix of our EPDM suction hose provides good abrasiveness-resistance, which is a good choice for rough condition.
Temperature from -60°F to +176°F
Diameter: 38mm to 150mm
Lenfgth: as per customer’s requirements.
Application: Agricultural irrigation, agrictural machinery, marine and industrial pump and dewatering
| Part# | Nominal Diameter | Outer Diameter | Working Pressure | Weight | |
| inch | mm | mm | bar/psi | kg/m | |
| SUCPE150 | 1-1/2 | 38 | 54 | 7.0/100 | 0.59 |
| SUCPE175 | 1 3/4 | 45 | 55 | 7.0/100 | 0.65 |
| SUCPE200 | 2 | 50 | 61.5 | 7.0/100 | 0.75 |
| SUCPE250 | 2-1/2 | 65 | 76.2 | 7.0/100 | 0.99 |
| SUCPE300 | 3 | 75 | 87 | 5.5/80 | 1.2 |
| SUCPE400 | 4 | 100 | 115 | 4.5/65 | 2.04 |
| SUCPE600 | 6 | 150 | 169 | 3.5/50 | 2.21 |
