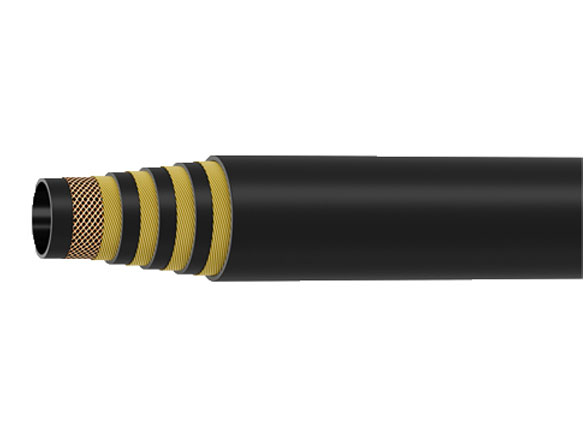

DIN EN856/DIN20023 4SP

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spiral
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +125℃
Applications:
Very high pressure applications used for petroleum based hydraulic fluids

Inside Diameter		Reinforcement Diameter	Outside Diameter	WP		BP		Min. Bend Radius	Weight
inch	mm	mm	mm	psi	bar	PSI	bar	mm	kg/m
3/8	9.3-10.1	17.4-18.2	21.2-22.0	6500	450	26000	1780	180	0.75
1/2	12.3-13.5	20.3-21.1	24.2-25.0	6000	415	24000	1660	230	0.89
5/8	15.5-16.7	23.8-24.6	27.7-28.5	5000	350	20000	1400	250	1.1
3/4	18.6-19.8	28.3-29.1	32.2-33.0	5000	350	20000	1400	300	1.5
1	25.0-26.4	35.4-36.2	39.2-40.0	4000	280	16000	1120	340	2.02
1-1/4	31.4-33.0	45.1-45.9	50.2-51.0	3000	210	12000	840	460	3.05
1-1/2	37.7-39.3	51.6-52.4	56.7-57.5	2700	185	10800	740	560	3.4
2	50.4-52.0	64.6-65.4	70.7-71.5	2400	165	9600	660	660	4.35
