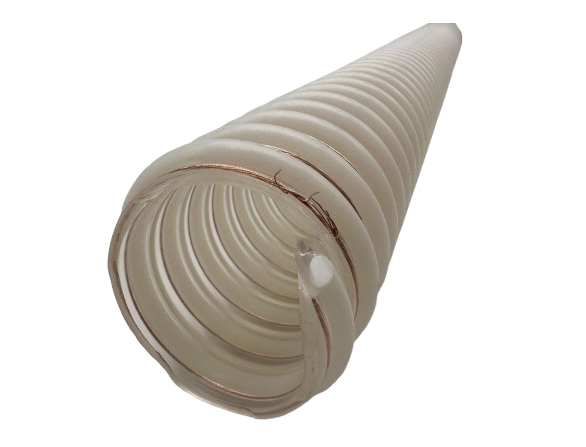

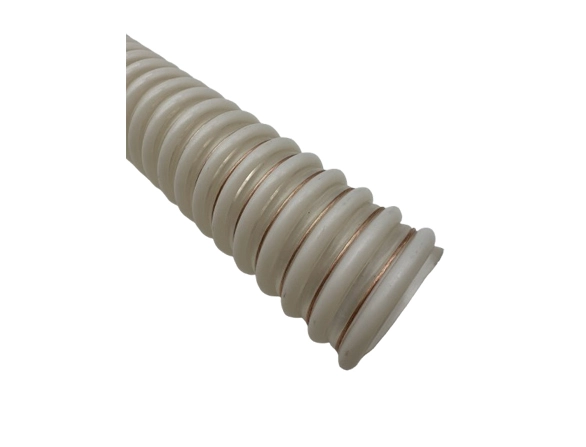

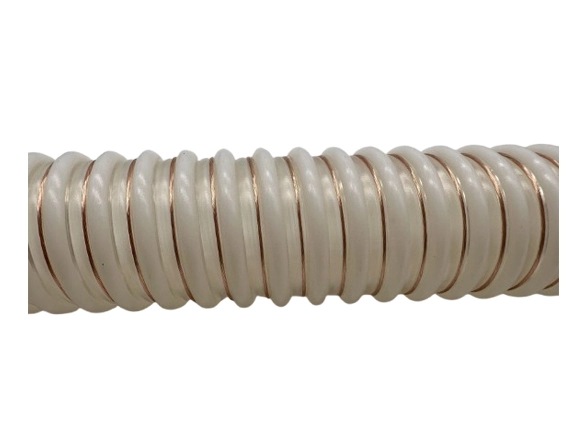

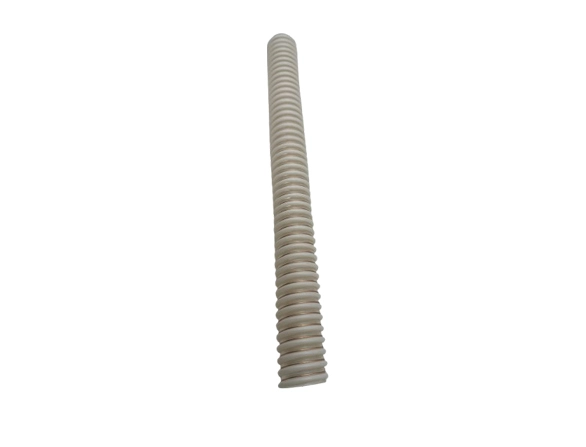

PU Sprial Anti-Static Dusting Hose

Application:

Suitable for dust removal and suction equipment in grinding workshops, and for the transportation of explosive dust, food flour, welding smoke, oil vapor, fiber debris, sawdust and other materials.

Material properties:

The conductive copper wire attached to the outer wall of the hose can discharge static electricity. It is non-toxic, odorless, and halogen-free. It also has strong wear resistance. The hose can return to its original state after being crushed to a certain extent.

Temperature range:

-40℃ to +90℃ (up to +125℃ for short-term use)

I.D MM	THICKNESS MM	OPERATING PRESSURE BAR	VACUUM PRESSURE BAR	LENGTH M
19	0.60	2.250	0.460	10
25	0.60	1.600	0.360	10
32	0.60	1.260	0.340	10
38	0.60	1.060	0.320	10
45	0.60	1.015	0.300	10
50	0.60	0.815	0.260	10
63	0.60	0.630	0.180	10
75	0.60	0.545	0.140	10
90	0.60	0.455	0.115	10
100	0.60	0.410	0.090	10
110	0.60	0.375	0.080	10
120	0.60	0.340	0.075	10
125	0.60	0.330	0.060	10
140	0.60	0.295	0.060	10
150	0.60	0.275	0.055	10
175	0.60	0.235	0.040	10
200	0.60	0.205	0.035	10
225	0.60	0.180	0.030	10
250	0.60	0.165	0.015	10
275	0.60	0.150	0.015	10
300	0.60	0.135	0.010	10
