Male Camlock Adaptor and Male TYPE F

Male Camlock Adaptor and Male TYPE F
  • Male Camlock Adaptor and Male TYPE F

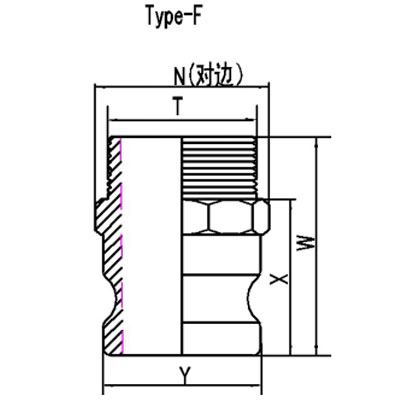

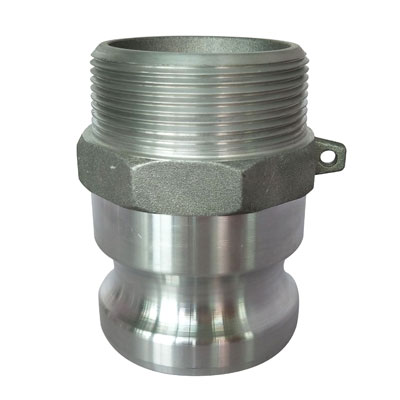

Male Camlock Adaptor and Male BSP Thread Type-F

Male Camlock Adaptor and Male BSP Thread

Specification of Male Camlock Adaptor and Male BSP Thread

Part No. Type DN Inch T W X Y
QC-F050 50 13 1/2" BSP/NPT 56.5 39.5 24.3
QC-F075 75 20 3/4" BSP/NPT 61.5 42.1 32.04
QC-F100 100 25 1" BSP/NPT 71.1 51.3 36.66
QC-F125 125 32 1-1/4" BSP/NPT 81 55.2 45.46
QC-F150 150 40 1-1/2" BSP/NPT 78.4 56.5 53.4
QC-F200 200 50 2" BSP/NPT 87 62.4 63.03
QC-F250 250 65 2-1/2" BSP/NPT 97 68 75.76
QC-F300 300 80 3" BSP/NPT 103.4 72 91.48
QC-F400 400 100 4" BSP/NPT 115 78.6 119.52
QC-F500 500 125 5" BSP/NPT 109.1 73 145.2
QC-F600 600 150 6" BSP/NPT 119.6 79.3 175.93
QC-F800 800 200 8" BSP/NPT 162.56 118.11 231.14
