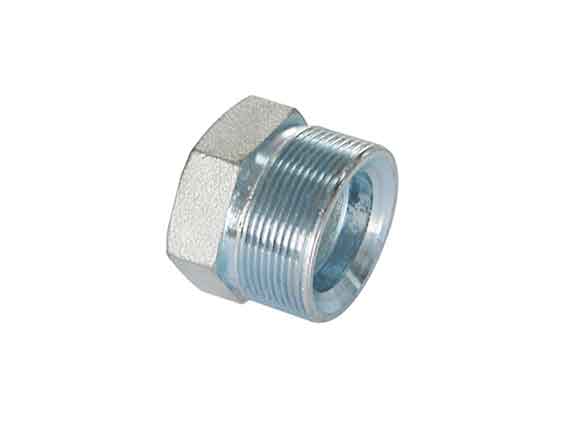

Ground Joint female spud is included in the female hose coupling set. Purchase additional female spuds to convert additional equipment, pipe, and manifolds to ground joint wing nut thread.
-
Male wing nut thread to F NPT
-
only use with ground joint female couplings (do not use if female swivel requires an external gasket)
-
NPT size matches wing nut size (no jump sizes)
1-1/4" and larger sizes are plated iron, smaller sizes are plated steel
3/4" & 1" use the same wing nut thread, and 1-1/4 & 1-1/2" use the same wing nut thread
|
Ground Joint Coupling
|
|
Size
|
Female Spud
|
|
|
PART #
|
|
1/2"
|
GJFS050
|
|
3/4"
|
GJFS075
|
|
1"
|
GJFS100
|
|
1 1/4"
|
GJFS125
|
|
1 1/2"
|
GJFS150
|
|
2"
|
GJFS200
|
