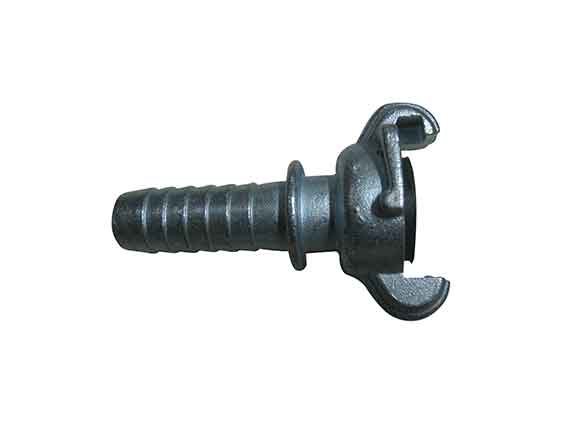

Universal Air Hose Coupling/Chicago-style Universal Hose Coupling

Universal claw air hose coupling is for air hose and water hose. Two lugs are designed for 1/4", 3/8", 1/2", 5/8", 3/4" and 1" air king universal coupling.  On 1 1/2" and 2",  there are 4 lugs.

To provide protection against coupling breakage and related hazards, you can use whipcheck safety cable to avoid any danger because of sudden disconnection.

The working pressure could be reached 150 PSI at ambient temperature.

Air king iron air hose fitting can be called jackhammer coupling or claw coupling.

SIZE

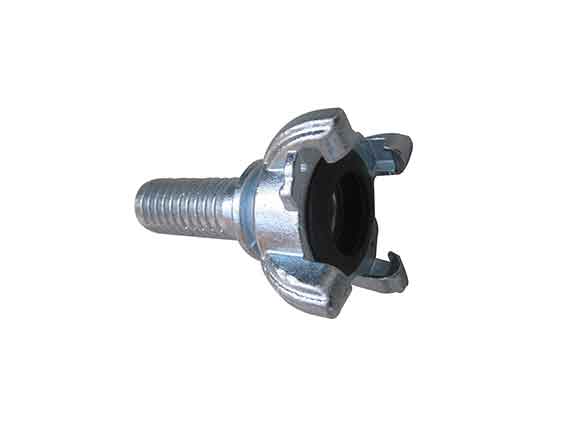

HOSE END

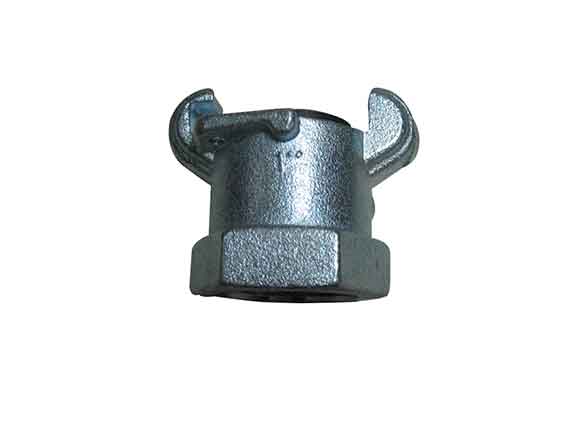

FEMALE END

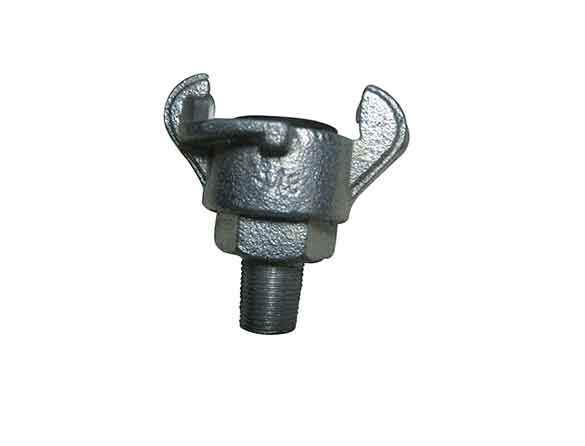

MALE END



PART #

PART #

PART #

1/4"

2 LUGS

UNUSHE0250

UNUSFE0250

UNUSM0250

3/8"

2 LUGS

UNUSHE0375

UNUSFE0375

UNUSM0375

1/2"

2 LUGS

UNUSHE0500

UNUSFE0500

UNUSM0500

5/8"

2 LUGS

UNUSHE0625



3/4"

2 LUGS

UNUSHE0750

UNUSFE0750

UNUSM0750

1"

2 LUGS

UNUSHE1000

UNUSFE1000

UNUSM1000


SIZE


HOSE END

FEMALE END

MALE END



PART #

PART #

PART #

1 1/4"

4 LUGS

UNFLUC1250

UNFE1250

UNUSM1250

1 1/2"

4 LUGS

UNFLUC1500

UNFE1500

UNUSM1500

2"

4 LUGS

UNFLUC2000

UNFE2000

UNUSM2000


SIZE

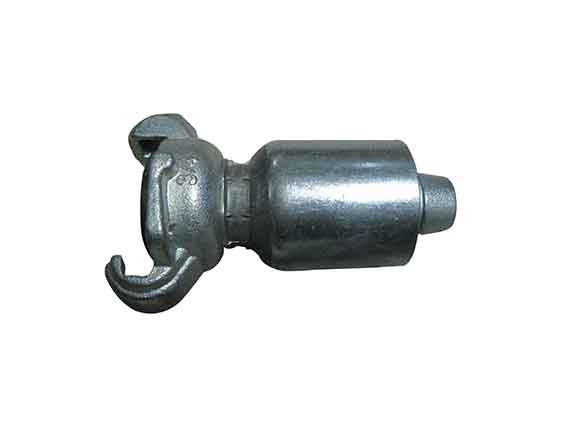

CRIMP UNIVERSAL


PART #

1/2"

UNUSCU0500

3/4"

UNUSCU0750

1"

UNUSCU1000


BLANK END

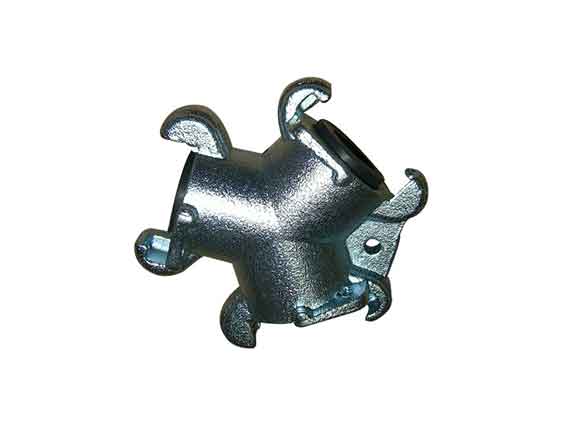

TRIPLE CONNECTOR

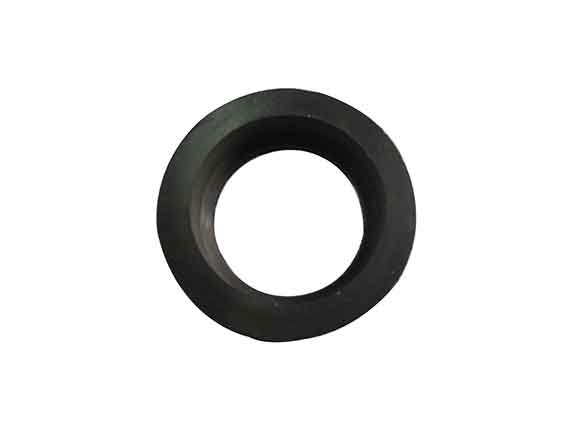

WASHER -PART #.: UNUSWA-1 ( for 2 lugs)

PART #.: UNUSEND

PART #: UNUSTC

WASHER-PART #.: UNUS-WA-2 (for 4 lugs)
