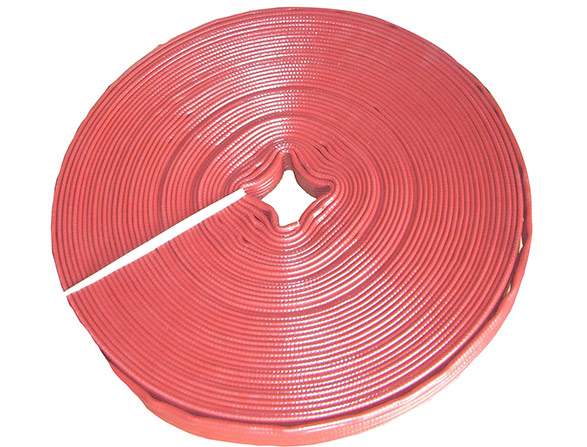

Construction: Our PVC layflat hose pipe is made of Premium quality PVC tube and cover, reinforced with two spiral plies and longitudinal synthetic cords.
Color: blue, brown, red, orange, black, green, yellow and so on.
Standard length: 20m, 25m,30m, 40m, 50m, 100m, 25ft, 50ft, 100ft, 300ft
Application: water discharge designed for long lasting service in heavy duty application such as mine.
Temperature: -10°C + 60°C.
• Designed for mining applications, including mine dewatering and water transfer.
• Storage - All coils have PVC cores for easier dispensing.
NOMINAL SIZE | I.D. | PART # | W.P. (PSI) | B.P. (PSI) |
1” | 1.04" | PVCLAY-25-EH | 120,150 | 360,450 |
1 1/4“ | 1.3" | PVCLAY-32-EH | 120,150 | 360,450 |
1 1/2” | 1.56" | PVCLAY-38-EH | 120,150 | 360,450 |
2" | 2.09" | PVCLAY-51-EH | 120,150 | 360,450 |
2 1/2" | 2.57" | PVCLAY-64-EH | 120,150 | 360,450 |
3" | 3.07" | PVCLAY-76-EH | 120,150 | 360,450 |
4" | 4.10" | PVCLAY-102-EH | 120,150 | 360,450 |
5" | 5.07" | PVCLAY-127-EH | 120,150 | 360,450 |
6" | 6.16" | PVCLAY-152-EH | 120,150 | 360,450 |
8" | 8.17" | PVCLAY-203-EH | 120,150 | 360,450 |
10" | 10.2" | PVCLAY-254-EH | 120,150 | 360,450 |
12" | PVCLAY-305-EH | 120,150 | 360,450 |
