Guillemin Coupling-Hose Shank

Guillemin Coupling-Hose Shank

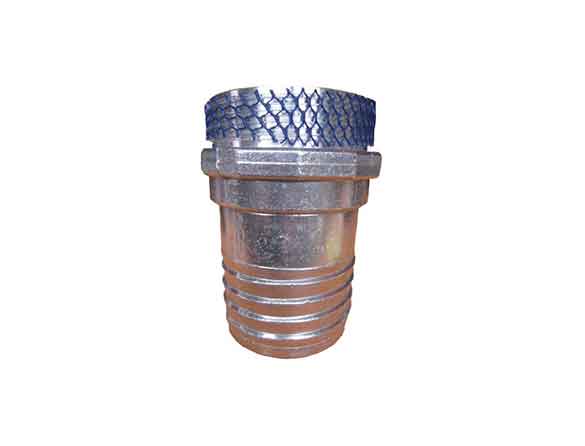

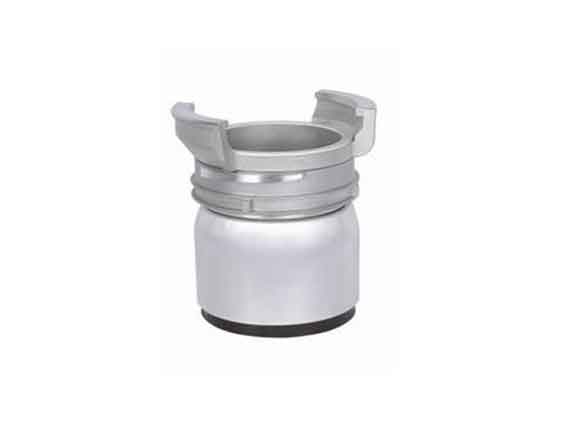

Symmetrical half coupling with hose shank and locking ring.
Available in Aluminium, Stainless Steel, Brass or Polypropylene
Working Pressure: 16 bar
Standard with NBR seal
Remark: This type is always supplied with a locking ring
  • Guillemin Coupling-Hose Shank
  • Guillemin Coupling-Hose Shank
  • Guillemin Coupling-Hose Shank
  • Guillemin Coupling-Hose Shank

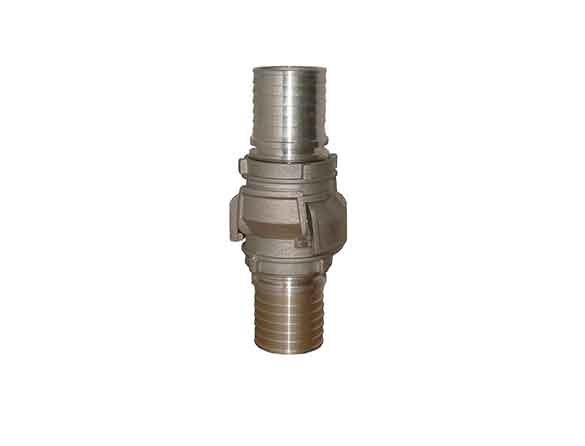

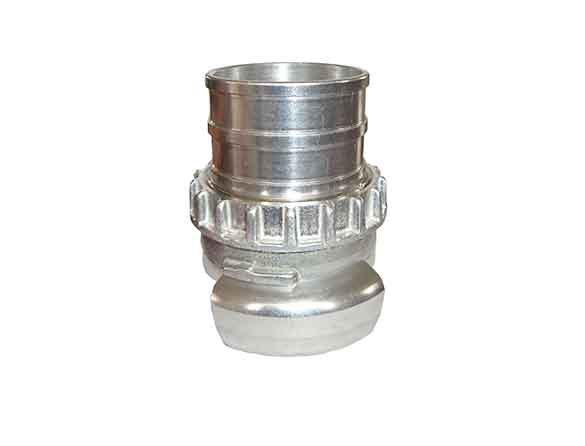

Guillemin Coupling with Hose Tail is part of a coupling system in which both halves are identical, as French standard tanker connection. The coupling works by simply putting the two halves together and turning a tapered locking ring which tightens into a tapered channel on the other half, making it a tight secure connection. Complete with a lock ring and multi-serrated hose tail, this aluminium coupling features a nitrile rubber seal as standard. A lock ring must be present on at least one half to enable the connection. Complies with EN 14420-8.

Hose Shank (W / W.O Collar

Dn

Size

Part#

O.D(mm)

Length(mm)

Collar

40

1-1/2”

SZ-GUL4040-AL

40

35

w

40

1-1/2”

SZ-GUL4040L-AL

40

45

w

40

1-1/2”

SZ-GUL4045-AL

45

39.5

w/o

40

1-1/2”

SZ-GUL4045L-AL

45

52

w/o

50

2”

SZ-GUL5050-AL

50

35

w

50

2”

SZ-GUL5050L-AL

50

49

w

50

2”

SZ-GUL5055-AL

55

49

w

65

2-1/2”

SZ-GUL6565-AL

65

55

w

65

2-1/2”

SZ-GUL6570-AL

70

55

w

80

3”

SZ-GUL8076-AL

76

57.7

w

80

3”

SZ-GUL8076L-AL

76

70

w

80

3”

SZ-GUL8080-AL

80

68

w

80

3”

SZ-GUL8090-AL

90

64.8

w/o.

80

3”

SZ-GUL8090L-AL

90

80.5

w/o

100

4”

SZ-GUL100100-AL

100(or101.6)

66.5

w

100

4”

SZ-GUL100100L-AL

100(or101.6)

95

w

100

4”

SZ-GUL100105-AL

105

95

w/o

100

4”

SZ-GUL100110-AL

110

90

w/o
