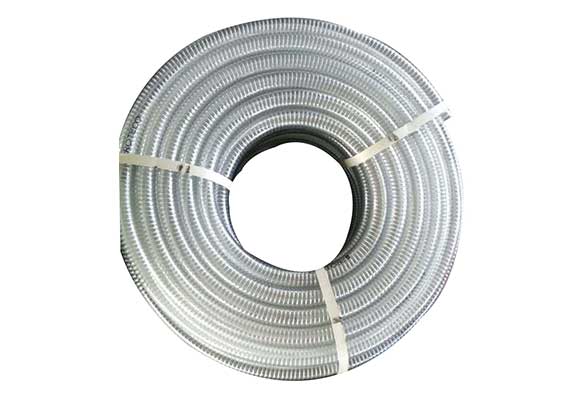

Construction of food class PVC steel wire hose :
Tube and cover are crystal clear PVC FDA grade.
Reinforcement is electro-galvanized spring steel wire.
Temperature: -14℉(-26℃) to +140℉(+60℃)
Food and beverage dispensing, air, water, coolant, car wash, deionized water systems, and other clear flow applications.
1. Clear food-grade PVC allows for visual flow inspection.
2. Spring steel wire prevents kinking and collapsing.
3. All sizes are full vacuum.
Inch | I.D.mm | O.D.mm | Length | MAX.W.P.(BAR) | MAX.B.P.(BAR) | Weight(G/M) |
1/4" | 6 | 11 | 100 | 8 | 24 | 115 |
5/16" | 8 | 14 | 100 | 8 | 24 | 150 |
3/8" | 9 | 15 | 100 | 8 | 24 | 170 |
3/8" | 10 | 16 | 100 | 8 | 24 | 200 |
1/2" | 12 | 18 | 100 | 8 | 24 | 220 |
5/8" | 15 | 22 | 50 | 6 | 18 | 300 |
3/4" | 19 | 26 | 50 | 6 | 18 | 360 |
3/4" | 20 | 26 | 50 | 6 | 18 | 320 |
7/8" | 22 | 27 | 50 | 6 | 18 | 300 |
1" | 25 | 33 | 50 | 5 | 16 | 540 |
1-1/4" | 32 | 40 | 50 | 5 | 16 | 700 |
1-1/2" | 38 | 48 | 50 | 5 | 15 | 1000 |
1-3/4" | 45 | 56 | 50 | 5 | 15 | 1300 |
1-7/8" | 48 | 59 | 50 | 5 | 15 | 1400 |
2" | 50 | 62 | 50 | 5 | 15 | 1600 |
2-5/16" | 58 | 69 | 40 | 4 | 12 | 1600 |
2-1/2" | 64 | 78 | 30 | 4 | 12 | 2500 |
3" | 76 | 90 | 30 | 4 | 12 | 3000 |
3-1/2" | 90 | 108 | 20 | 4 | 12 | 4500 |
4" | 102 | 116 | 20 | 4 | 12 | 4300 |
