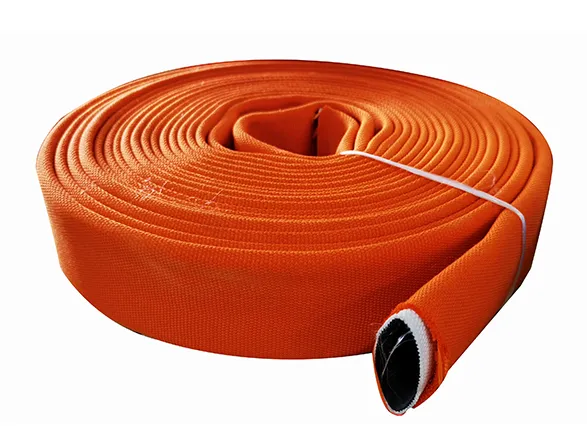

Premium PU-Coated Double Jacket EPDM Fire Hose – engineered for maximum durability & performance. The woven polyester jacket (plain/twill weave) controls elongation/expansion, while the PU outer coating enhances abrasion, corrosion, and waterproofing. The ozone-resistant EPDM lining, extruded via cold-feed process, ensures smooth flow (0.5mm ±0.05mm wall) and strong adhesion (40kN/m). Compatible with John Morris, Storz, NST, and Forest couplings, PU-coated double-jacket EDPM lining fire hose is ideal for firefighting, industrial, and emergency use. Built to withstand extreme conditions.
Seapeak Double Jacket EDPM Lining Fire hose webbing is woven with warp and weft threads.
The warp thread is made from polyester yarn, controlling the elongation rate of the fire hose.
The weft thread uses high-strength polyester filament, controlling the expansion rate of the fire hose.
The weaving method can be either plain weave or twill weave.
The inner layer webbing uses white polyester, while the outer layer is coated with PU (polyurethane), enhancing the hose’s abrasion resistance, corrosion resistance, and providing waterproof and moisture-proof properties.
| Feature | Specification |
|---|---|
| Extrusion Process | 90mm screw diameter cold-feed extruder (16:1 L/D ratio) |
| Die Design | Internationally standard die design |
| Lining Material | Ozone-resistant EPDM rubber |
| Surface & Dimensions | Smooth inner/outer surfaces; 0.5mm ±0.05mm wall thickness |
| Adhesive Compatibility | Compatible with liquid and hot melt adhesive systems |
| Adhesive Strength | 40 kN/m |
The double jacket EDPM lining fire hose can be coupled with:
John Morris coupling(BS336 fire hose coupling), fire hose storz coupling, expansion ring fire hose NST/ NPSH coupling, forest coupling
| Part No. | Service Pressure | Burst Pressure | Color | ||
| PSI | BAR | PSI | BAR | red, yellow, blue, green, orange, and so on | |
| PCDJ-150 | 250 | 17 | 750 | 51 | |
| PCDJ-200 | 250 | 17 | 750 | 51 | |
| PCDJ-250 | 250 | 17 | 750 | 51 | |
| PCDJ-300 | 250 | 17 | 750 | 51 | |
