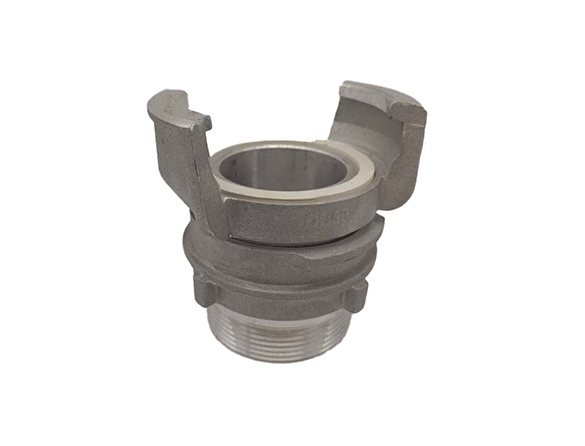

Guillemin Coupling-Male With Locking Ring

Symmetrical half coupling with male thread and locking ring.
Available in Aluminium, Stainless Steel, Brass or Polypropylene
Thread: EN ISO 228-1
Standard with NBR seal

Guillemin couplings are widely used for the transport of liquid or viscous hydrocarbons, bitumen included, chemicals or powders, except for liquefied gases and steam.

working pressure : 16 bar.
Test pressure : 24 bar
Bursting pressure : 48 bar.

The operating temperature range of fittings with nitrile butadiene rubber (NBR) seals is -20 ° C to + 65 ° C.

Guillemin Coupling-Male With Latch
Dn	Size	Part#
40	1-1/2”	SZ-GUL026-AL
50	2”	SZ-GUL027-AL
65	2-1/2”	SZ-GUL028-AL
80	3”	SZ-GUL029-AL
100	4”	SZ-GUL030-AL
