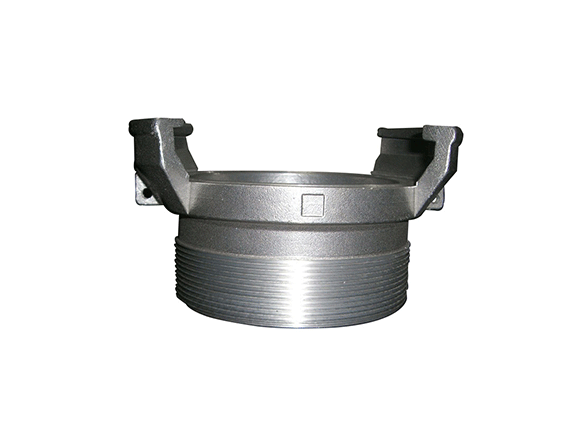

Symmetrical half coupling with male thread and locking ring. The Guillemin coupling-male without locking ring is available in aluminium, stainless steel, brass, or polypropylene. It features EN ISO 228-1 threads, a working pressure of 16 bar, and comes standard with an NBR seal.
The Guillemin coupling-male without locking ring features a smooth bore that prevents product buildup, is lightweight, and easy to connect. A lock ring must be present on at least one half for the connection to be secure. Moreover, it complies with EN 14420-8 standards.
Guillemin Coupling-Male W/O Latch | ||
Dn | Size | Part# |
40 | 1-1/2” | SZ-GUL021-AL |
50 | 2” | SZ-GUL022-AL |
65 | 2-1/2” | SZ-GUL023-AL |
80 | 3” | SZ-GUL024-AL |
100 | 4” | SZ-GUL025-AL |
