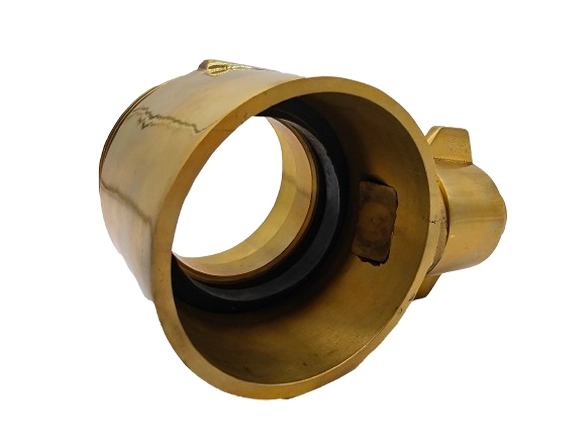

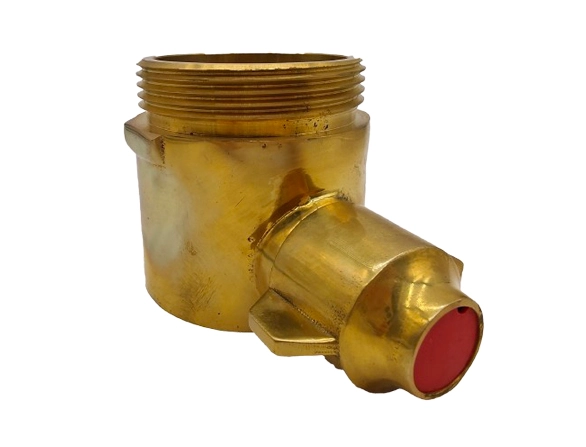

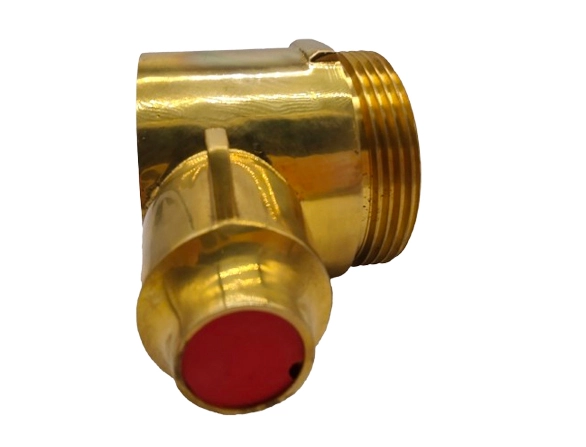

Female BS336 instantaneous coupler is connected with male adapter of fire equipment. For example: fire pump or fire hydrant. Meanwhile, male thread also connects with female thread of fire nozzle or fire pump.
The BS336 john morris coupler is available in aluminum or brass. We can produce thread from 1” to 2 1/”2.
Besides BSP thread, we also supply NST, NPSH and other thread. The maximum working pressure is 15bars. Different size coupler can combine with different thread. F.e. 2 1/2” BS 336 female instantaneous(john morris) coupler with 2” male thread.
Features:
High pressure fire hose coupler
Smooth surface and free of rust
Standard: BS336
| Female BS336 instantaneous coupler with male thread | |
| SIZE | PART # |
| 1" X 2 1/2" | JMFM01-100X250 |
| 1 1/2" X 2 1/2" | JMFM01-150X250 |
| 2" X 2 1/2" | JMFM01-200X250 |
| 2 1/2" X 2 1/2" | JMFM01-250X250 |
