In large-scale fluid management—ranging from mine dewatering to high-volume agricultural irrigation—the integrity of the coupling system is a primary factor in operational safety and hydraulic efficiency. Bauer Type Couplings are engineered for rapid deployment, utilizing a ball-and-socket geometry that accommodates significant pipe misalignment.
As an ISO9001-certified manufacturer with over 30 years of industry experience, SUZHOU SEAPEAK CO., LTD. maintains rigorous control over raw material inspection and production processes to ensure these components meet international performance standards.
The Bauer system operates on a lever-lock mechanism that creates a high-pressure seal through mechanical compression.
Materials: Standard units are typically constructed from galvanized steel to provide corrosion resistance in outdoor and industrial environments.
Articulated Range: The unique socket design allows for a deflection of up to 30° at the joint, facilitating installation on uneven terrain without compromising seal integrity.

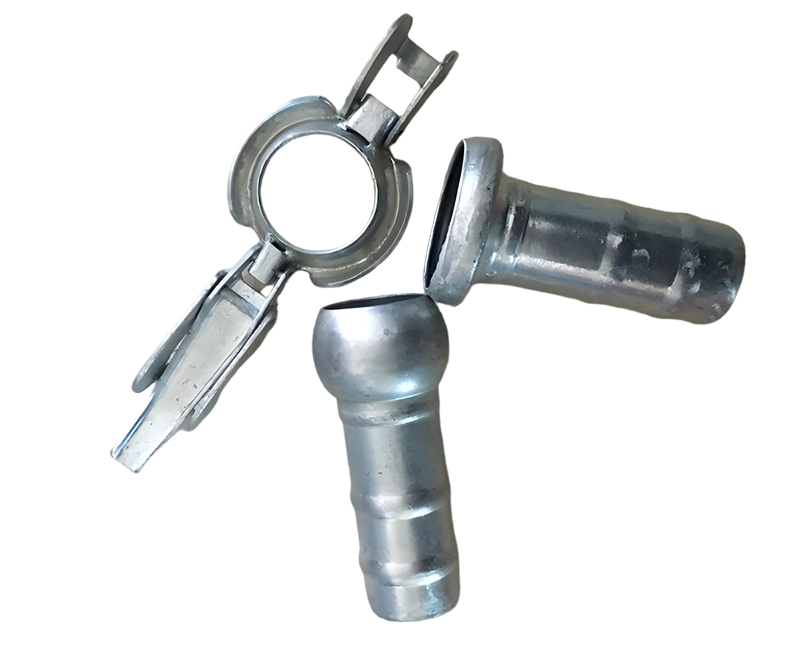

Components: A complete Type B assembly includes the bauer socket (female), bauer ball (male), locking lever, and a Buna-N gasket for leak-proof sealing.
To ensure a leak-free connection and prevent premature wear of the coupling face, the following technical procedures should be observed:
Substrate Preparation: Thoroughly clean the male ball and female socket. Remove any oxidation, debris, or residual media to ensure the gasket seats flush against the ball surface.
Elastomer Lubrication: Apply a thin layer of silicone-based lubricant to the gasket and the male ball. This reduces friction during the lever-locking phase and prevents the gasket from pinching or tearing under compression.
Alignment and Engagement: Insert the male ball into the female socket. Ensure the locking lever is aligned with the corresponding hooks on the socket before applying force.
Lever Actuation: Engage the lever to compress the internal gasket. The connection is secure when the lever is fully locked; for high-pressure applications, secondary safety pins or Whipcheck Safety Cables are recommended to prevent accidental decoupling.
The performance of a Bauer coupling is contingent upon its compatibility with the host piping material. SEAPEAK manufactures a range of hoses specifically engineered for integration with Bauer systems:
Hose Type | Technical Characteristics | Primary Application |
PVC/Nitrile Layflat | Circular woven polyester reinforcement with a ribbed Nitrile/PVC blend cover. | General water discharge and pump discharge systems. |
TPU Layflat | Thermoplastic polyether-based polyurethane with a high-tenacity circular woven jacket. | High-pressure petroleum applications and long-distance water transport. |
PVC Steel Wire Reinforced | Synthetic plastic polymer reinforced with a steel helix for vacuum resistance. | Suction-side pump applications to prevent hose collapse. |
Accurate specification is critical when replacing components in an existing system. When ordering from SEAPEAK, professional buyers should provide the following measurements using precision calipers:
Coupling Size: Standard sizes range from 2” to 12”.
Hosetail Outer Diameter: This must precisely match the internal diameter of the hose to ensure a secure fit for banded or crimped assemblies.
Strainer Compatibility: For suction applications, Bauer couplings should be paired with galvanized steel strainers (available in 1”-8” sizes) to prevent solid ingress into the pump.
For technical consultations regarding hose assembly or material compatibility, please contact the SUZHOU SEAPEAK engineering team.
